BORNIT® Asphalt Adhesive R2 C40BF5-S

bitumen | asphalt adhesive | cationic | road construction
BORNIT
short information
  • good adhesive properties
  • high wettability
  • cationic bitumen emulsion
  • binding agent approx. 40 %
  • for pre-spraying dirty and aged asphalt surfaces
  • pretreatment before applying asphalt mix or cationic bitumen emulsions
  • quality according to TL BE-StB 15
product
colour
content

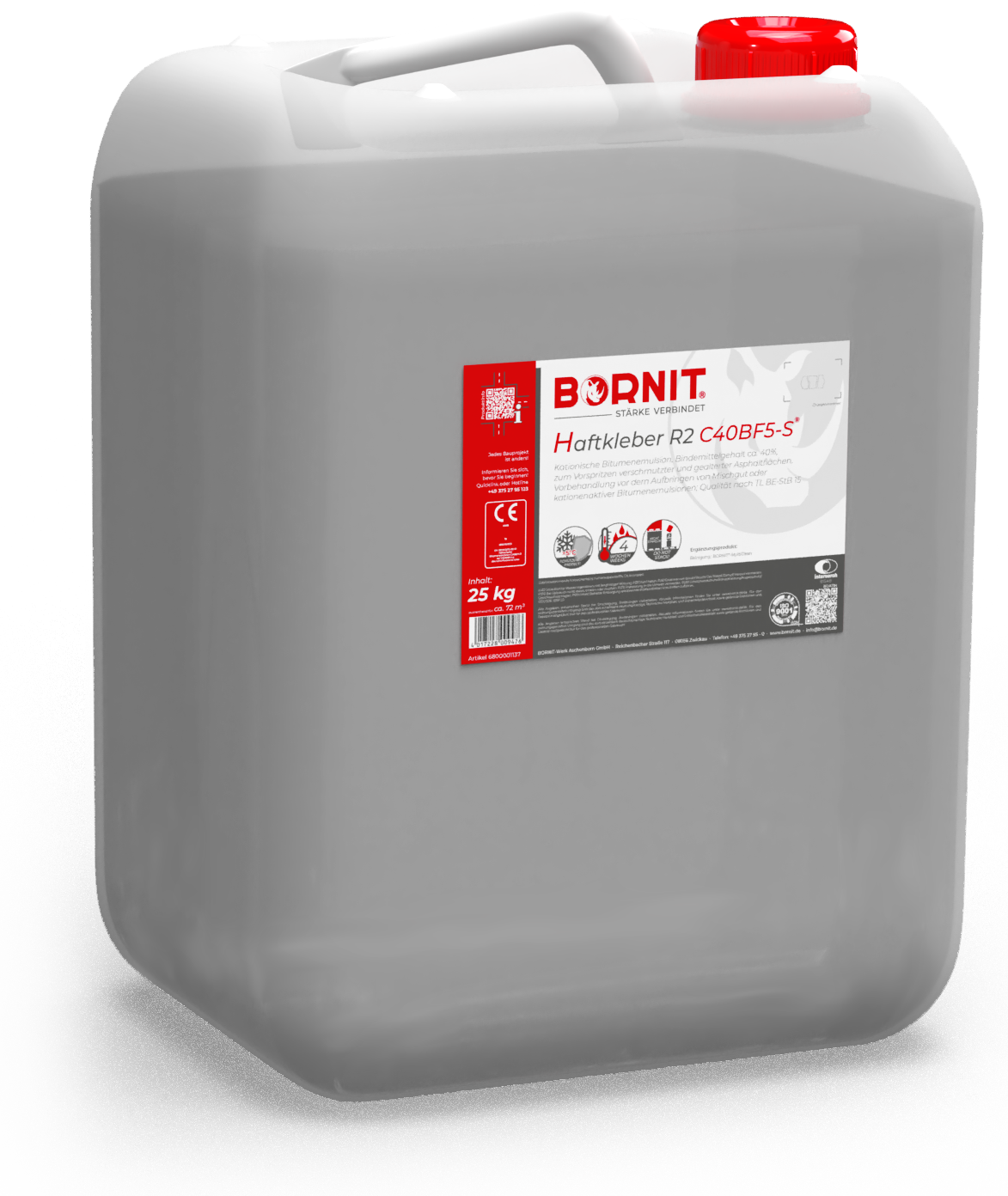

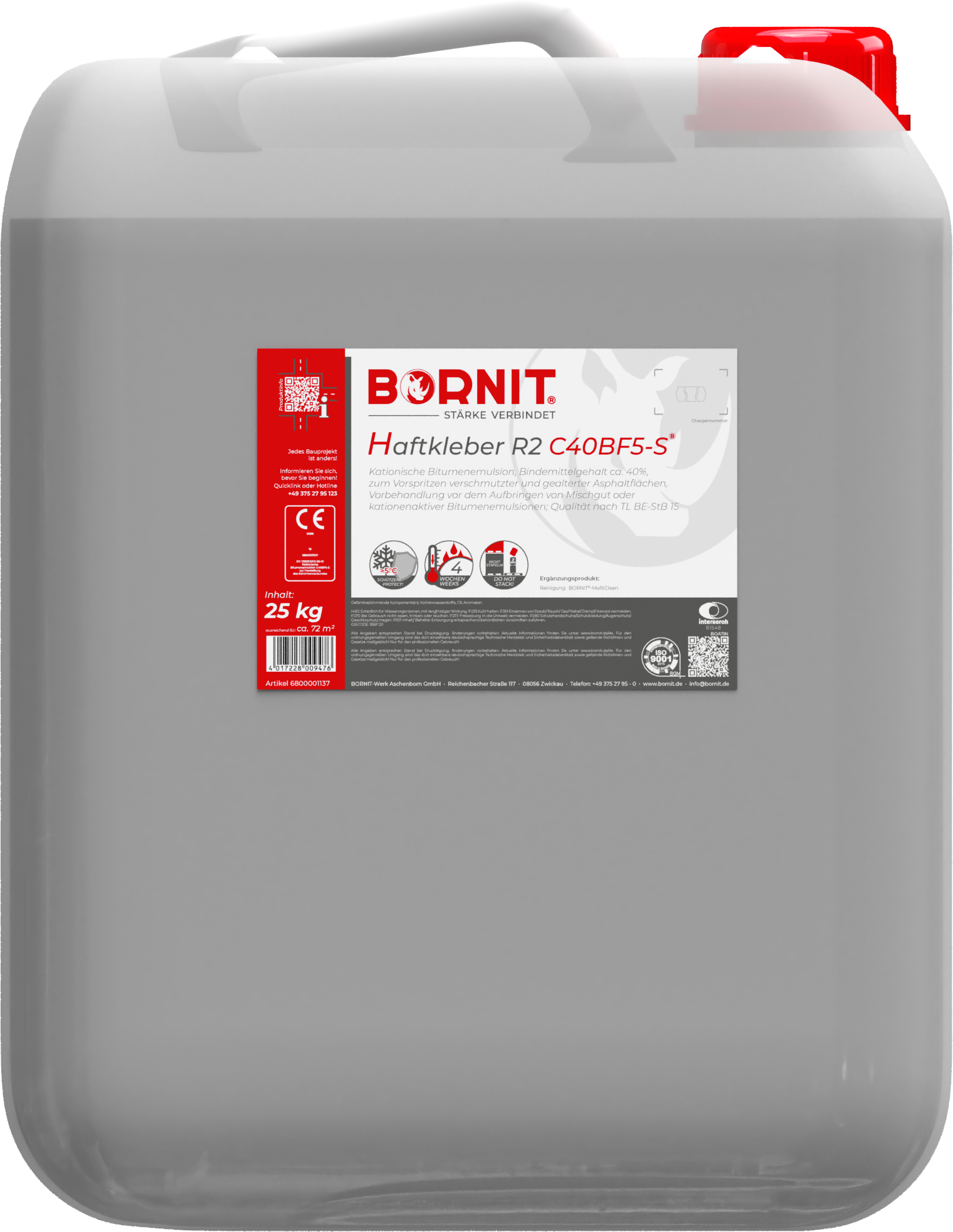

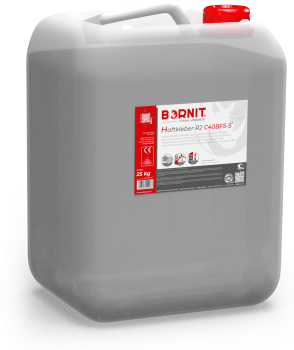

Asphalt Adhesive R2 C40BF5-S
black
25 kg / canister
sufficient for:
item
EAN code
euro pallet
approx. 55.6 - 125.0 m²
6800001137
4 017228 00947 6
24 canister
consumption
approx. 0.2 to 0.45 kg/m², according to Table 8 of ZTV Asphalt-StB 07 (German Standard governing the paving of traffic areas with asphalt)
storage note
  • protect from frost!
  • in the originally closed container storable for 4 weeks

status technical data sheet
28 September 2021

areas of application
BORNIT® Asphalt Adhesive R2 C40BF5-S is used for spraying on soiled, aged or milled asphalt surfaces, which are prepared for the subsequent application of asphalt mix. It serves as a bonding agent for producing composite layers in asphalt construction. BORNIT® Asphalt Adhesive R2 C40BF5-S adheres well to all asphalt substrates.
BORNIT® Asphalt Adhesive R2 C40BF5-S is used for load classes Bk1,0 and Bk0,3.

type and properties
BORNIT® Asphalt Adhesive R2 C40BF5-S is used for gating dirty, aged or milled asphalt surfaces prepared for the subsequent application of asphalt mix. It serves as an adhesion promoter to produce the layer bond in asphalt construction. BORNIT® Asphalt Adhesive R2 C40BF5-S adheres well to all asphalt substrates. BORNIT® Asphalt Adhesive R2 C40BF5-S is used for construction classes Bk1.0 and Bk0.3.

advantages
  • easiest handling because it is ready to use
  • good adhesive properties
  • high wettability
  • economical and cost-reducing as there is little equipment, material and labor

surface
Make sure that the substrate is firm, not wet and free from separating agents. Standing water must be removed.

processing
Immediate processing after delivery is recommended.

The line systems of transport and processing vehicles must be emptied following completion of work, if applicable. Longer transportation of the emulsion must be undertaken in full tanks. In order to avoid foaming of the product, filling or re-filling must be undertaken using bottom-up filling.

Spraying equipment used for application must be cleaned immediately after use in order to avoid clogging of nozzles and pipelines with bitumen. Such cleaning must be undertaken according to the provisions of the manufacturer of the spraying equipment. Do not mix BORNIT® Asphalt Adhesive R2 C40BF5-S with bitumen emulsions of other designations and other manufacturers.

Before use, pump over briefly - suitable pumps are e.g. channel wheel pumps.
If spraying directly from drums, these must be rolled beforehand.

Filling, storage and substrate temperature: min.+5 °C

Working temperature: min. +20 °C - max. +50 °C

consumption
approx. 0.2 to 0.45 kg/m², according to Table 8 of ZTV Asphalt-StB 07 (German Standard governing the paving of traffic areas with asphalt)

product data in brief
product type
bitumen adhesive
base
road pavement bitumen
solvent
water
density at +20 °C
0.98 g/cm³
PH-value
2,0 - 5,0
consistency
liquid, homogeneous
film-forming components
38 - 42 %
colour(s)
black
application
BORNIT® Asphalt Adhesive Sprayer, Hand-operated spraying machine, ramp sprayer or the like
processing temperature (ambient and substrate)
not below +20 °C and not above +50 °C
cleaning
im frischen Zustand mit Wasser, ausgehärtet mit BORNIT®-MultiClean Fix, BORNIT®-MultiClean oder BORNIT®-Bitumenreiniger
storage
protect from frost!
shelf life
in the originally closed container storable for 4 weeks
GISCODE
BBP 10
GISCODE link comp. A
https://www.wingisonline.de/showbetrandoc.aspx?gisbaunr=4/00000018219/000009&docid=1677&lang=de
substances hazardous to health in terms of the ordinance on hazardous materials
none
hazard class according to ADR
none
flash point
n.n.
type of charge
cationic
sieve residue
max. 0,5 %

health and fire protection, occupational safety
To ensure safe handling of the product, the physical, safety, toxicological and ecological information provided online, the information in the current safety data sheet and the additional information on the label must be read and followed before purchasing or using the product! The applicable regulations, ordinances and laws must be complied with.

In case of doubt, please contact the BORNIT® application technology department or the BORNIT® service hotline on +49 375 2795 123.

storage
The product can be stored for 4 weeks. Prior to use or filling, briefly recirculate the adhesive. Suitable pumps are, e.g., channel impellers. Upon direct spraying from barrels, these should be rolled beforehand. BORNIT® Asphalt Adhesive R2 C40BF5-S is not frost-resistant!

disposal note
Only empty containers for recycling. Material residues can be disposed of in accordance with AVV-ASN: 080410 (adhesive and sealing compound waste with the exception of those that come under 080409).

note
The above information replaces all previous technical information about the product. Thus, this information is no longer valid. The details have been compiled according to the latest state of application technology. Please observe, however, that, depending on the state of the construction object, deviations from the method of application suggested in the datasheet may be required. Unless agreed otherwise in individual contracts, any information contained in the datasheet shall be non-binding and thus does not represent an agreed product constitution. We reserve the right to any changes in the information contained in this datasheet anytime.

988

6800001137

EN 13808: 2013-05-01 | TL BE-StB 15
Cationic bitumen emulsion C40BF5-S
for producing composite layers

Viscosity (outflow time, 2 mm at +40 °C)≤ 20 s (2) EN 12846-1
Influence of water on binder adhesion (adhesivity)≥ 75 % (2) EN 13614 (quartzite)
Breaking behaviour> 170 (5) EN 13075-1
Hazardous substancesNPD* EN 13808
*No Performance Detiermined
DETERMINATION ON RECOVERED BINDER:
Consistency at medium usage temperature Needle penetration at 25 °C≤ 220x0,1 mm (5) EN 1426
Consistency at increased usage temperature Ring-and-ball softening point> +35 °C (8)
DETERMINATION OF DURABILITY Phase 1 – ON STABILISED BINDER:
Consistency at medium usage temperature Needle penetration at 25 °CDS (0,1 mm) (1) EN 1426
Consistency at increased usage temperature Ring-and-ball softening pointDS (°C) (1) EN 1427
DETERMINATION OF DURABILITY Phase 2 – ON STABILISED AND AGED BINDER:
Consistency at medium usage temperature Needle penetration at 25 °CDS (0,1 mm) (1) EN 1426
Consistency at increased usage temperature Ring-and-ball softening pointDS (°C) (1) EN 1427

GISCODE
BBP20

UN-number
Kein Gefahrgut im Sinne der Transportvorschriften.

H-records
H412: Harmful to aquatic life with long lasting effects.

P-records
P235: Keep cool.
P261: Avoid breathing dust/fume/gas/mist/vapours/spray.
P270: Do not eat, drink or smoke when using this product.
P273: Avoid release to the environment.
P280: Wear protective gloves/protective clothing/eye protection/face protection/hearing protection.
P501: Dispose of contents/container to a suitable recycling or disposal facility.

recommended, personal protective equipment:
