BORNIT® Joint Module
Flexomat | road construction | asphalt | centre seams | seam treatment
Short information
- add-on module for the BORNIT® Flexomat 3.1
- used for the rapid, clean application of BORNIT® Joint Flex® to central seams during the strip-by-strip construction of rolled asphalt surfaces
Consumption
Storage note
store in a dry place, protect from moisture; frost-free when filled
Complementary products
CleaningFollow-up products
status technical data sheet
4th October 2021
Areas of application
Used for the rapid, clean application of BORNIT® Joint Flex® to central seams during the strip-by-strip construction of rolled asphalt surfaces.
Please request the detailed documentation.
Please request the detailed documentation.
Type and properties

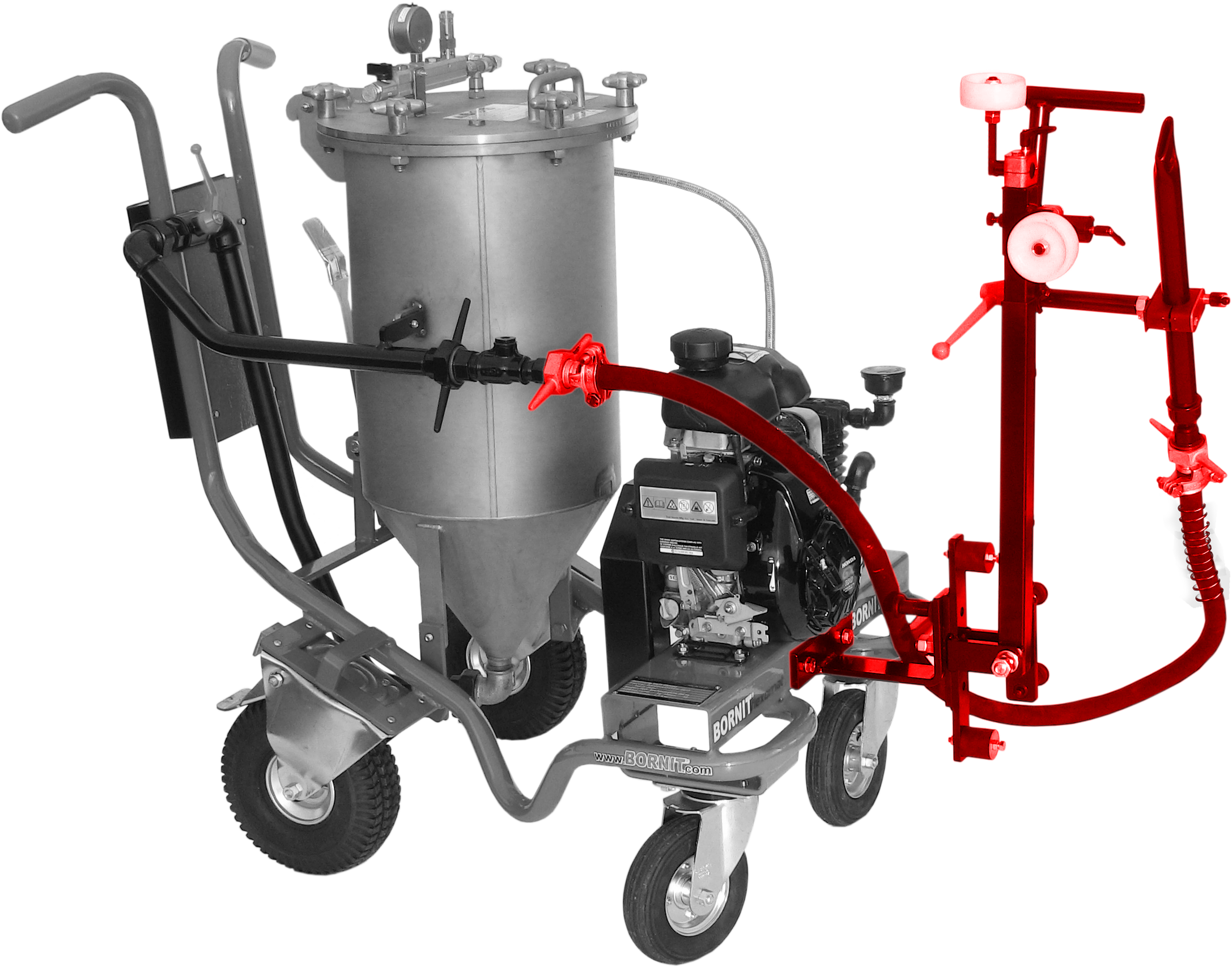

Add-on module for the BORNIT® Flexomat 3.1
Processing
The module is screwed to the module plate at the front of the BORNIT® Flexomat 3.1.
The hose for material transport is connected by means of a union nut to the thread provided on the material discharge tube of the Flexomat (right side in the centre of the pressure vessel).
The flexibly adjustable discharge arm is adapted to the respective seam condition. It can be adjusted for driving on the asphalt layer as well as for driving on the deeper binder course.
The hose for material transport is connected by means of a union nut to the thread provided on the material discharge tube of the Flexomat (right side in the centre of the pressure vessel).
The flexibly adjustable discharge arm is adapted to the respective seam condition. It can be adjusted for driving on the asphalt layer as well as for driving on the deeper binder course.
Product data in brief
Product type
Add-on module for the BORNIT® Flexomat 3.1
Base
metal, lacquered
colour(s)
black
Cleaning
BORNIT® MultiClean Spray, BORNIT® MultiClean, BORNIT® Bitumen Cleaner
storage
store in a dry place, protect from moisture; frost-free when filled
Hazard class according to ADR
keine
Health and fire protection, occupational safety
To ensure safe handling of the product, the physical, safety, toxicological and ecological information provided online, the information in the current operating instructions and the additional information on the label must be read and followed before purchasing or using the product! The applicable regulations, ordinances and laws must be complied with.
In case of doubt, please contact the BORNIT® application technology department or the BORNIT® service hotline on +49 375 2795 123.
In case of doubt, please contact the BORNIT® application technology department or the BORNIT® service hotline on +49 375 2795 123.
Storage
Store the module in a dry place, absolutely frost-free when filled!
Note
The information set out above supersedes all previous technical information relating to the product. The previous information is therefore no longer valid. The details have been compiled in accordance with the latest state of the art in application technology. Please note, however, that depending on the condition of the building, it may be necessary to deviate from the working method recommended in this data sheet. Unless otherwise agreed in an individual contract, all information contained in this data sheet is non-binding and therefore does not constitute an agreed product specification. We reserve the right to make changes to the information contained in this data sheet at any time.
The product illustrations are to be understood as examples. No legally binding claim can be derived from them. We reserve the right to make changes to the product’s appearance.
