BORNIT® Sealant Heater
sealant compounds | road construction | asphalt | concrete | processing | tool
Short information
- ideal for large quantities of hot sealant compounds
- for the clean pouring of hot sealant compounds
- with indirect propane gas heating
- BORNIT Sealant Heater 50 liters, including joint grouting shoe 4 cm.
Consumption
Storage note
- store in a dry place
- protect from sources of ignition
Complementary products
CleaningFollow-up products
Caution - there is an increased risk of burns due to hot sealing compounds!
status technical data sheet
30th January 2025
Areas of application
Bitumen-Vergusskocher zum schonenden, kontrollierten Aufschmelzen und Verarbeiten von allen BORNIT®-Heißvergussmassen. Das Chassis ermöglicht dem Riss leicht zu folgen. Die Heißvergussmassen können durch das händische Rührwerk gleichmäßig und sicher beim Aufschmelzvorgang umgewälzt werden.
Type and properties
The Sealent Heater is a compact device designed for the gentle melting and convenient application of joint sealing compound. It comes with a 50-liter container (maximum usable capacity: 49 liters) and is equipped with indirect propane heating.

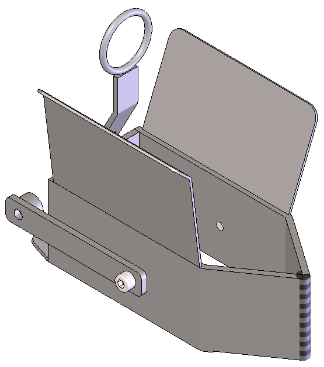

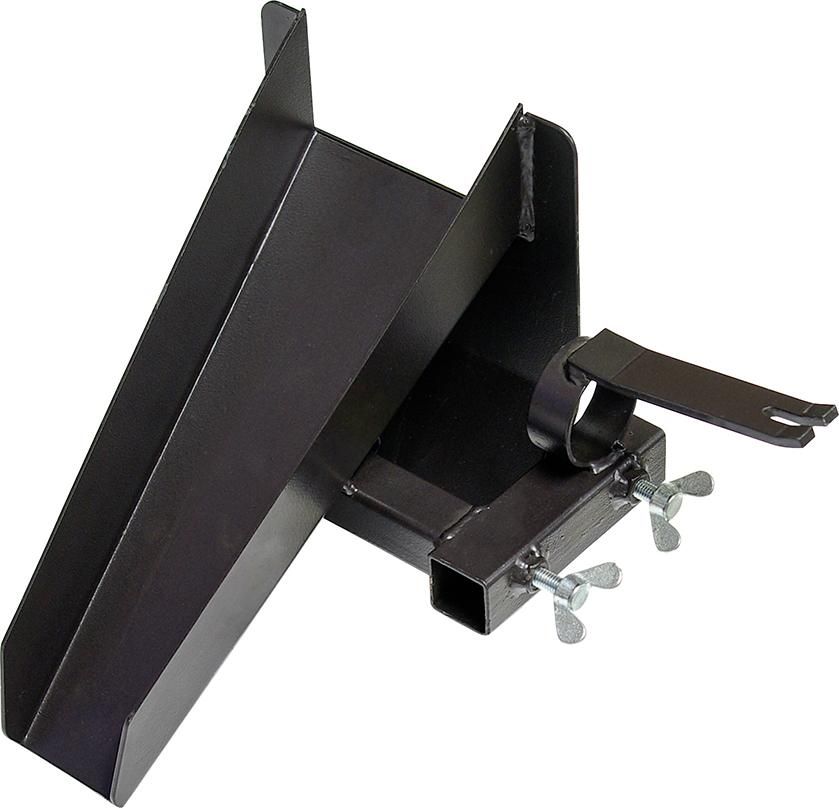

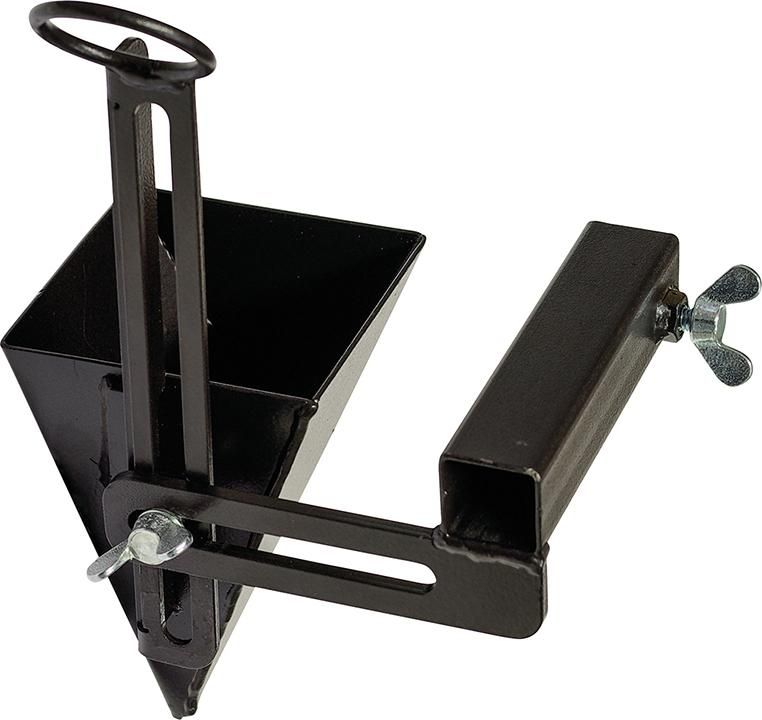

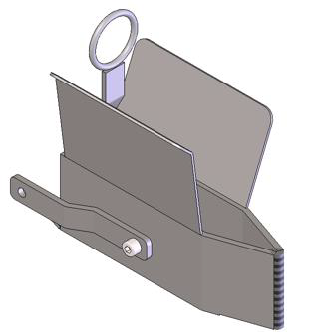

A manual stirring mechanism ensures proper circulation of the melted material. The side-mounted sealing sled, positioned within the operator’s field of view, allows for precise application of the hot compound into the joints. The discharge slide enables manual dosing of the sealing compound as needed.
The chassis with two swivel casters allows the operator to follow the crack line accurately.
A manual stirring mechanism ensures proper circulation of the melted material. The side-mounted sealing sled, positioned within the operator’s field of view, allows for precise application of the hot compound into the joints. The discharge slide enables manual dosing of the sealing compound as needed.
The chassis with two swivel casters allows the operator to follow the crack line accurately.
Advantages
- Safe transport through attachment points for securing on the truck and for crane transport
- For grouting joints up to 4 cm in width
- Indirect heating for gentle melting
- Metered discharge valve
- Precise following of crack patterns
Product data in brief
Product type
bitumen sealant heater
Base
metal chassis
colour(s)
black
Processing temperature (ambient and substrate)
max. + 180 °C
Cleaning
in cold state with BORNIT® MultiClean Spray, BORNIT® MultiClean or BORNIT® Bitumen Cleaner
storage
store in a dry place
protect from sources of ignition
Hazard class according to ADR
keine
Filling capacity
50 litres
Gas type
propane (11 kg bottle)
Heating
circular burner
Gas consumption / operating pressure
max. 0.9 kg per hour, 1.5 bar
Agitator
yes, manual agitator
Weight
approx. 95 kg with gas bottle, without bitumen filling
Sound pressure level
85 dBA
Temperature control
yes, adjustable from +150 °C to +270 °C
Health and fire protection, occupational safety
To ensure safe handling of the product, the physical, safety, toxicological and ecological information provided online, the information in the current operating instructions and the additional information on the label must be read and followed before purchasing or using the product! The applicable regulations, ordinances and laws must be complied with.
In case of doubt, please contact the BORNIT® application technology department or the BORNIT® service hotline on +49 375 2795 123.
In case of doubt, please contact the BORNIT® application technology department or the BORNIT® service hotline on +49 375 2795 123.
Storage
Store away from moisture, keep away from sources of ignition!
Disposal note
Den Kocher nach endgültiger Außerbetriebnahme entsprechend den dann geltenden Vorschriften entsorgen. Stahlteile (Behälter, Rahmen) in den Stahlschrott. Gasarmaturen in den Buntmetallschrott. Bitumenreste sind entsprechend den behördlichen Vorgaben zu entsorgen (EAK-Abfallschlüssel 17 03 02, Bitumengemische oder 05 01 17, Bitumen).
Note
The above information replaces all previous technical information about the product. Thus, this information is no longer valid. The details have been compiled according to the latest state of application technology. Please observe, however, that, depending on the state of the construction object, deviations from the method of application suggested in the datasheet may be required. Unless agreed otherwise in individual contracts, any information contained in the datasheet shall be non-binding and thus does not represent an agreed product constitution. We reserve the right to any changes in the information contained in this datasheet anytime.
