BORNIT® Road Markings type square
road markings | thermoplastic | traffic signs | traffic regulations (StVO)
short information
- ready to use straight out of the box
- short installation times, only flame on
- easy handling, little work required
- with laying plan
- can be driven over immediately after cooling
product
colour
content
sufficient for:
item
EAN code
an application
nnv21
sufficient for:
item
EAN code
an application
nnv22
sufficient for:
item
EAN code
an application
nnv23
sufficient for:
item
EAN code
an application
nnv24
sufficient for:
item
EAN code
an application
nnv25
sufficient for:
item
EAN code
an application
nnv26
sufficient for:
item
EAN code
an application
nnv27
consumption
storage note
- Store cardboard boxes in a dry place. Do not tilt, store horizontally!
- +5 °C to +25 °C
- Can be stored for 12 months in the original box
complementary products
status technical data sheet
24th November 2023
areas of application
BORNIT® Road Markings ensure safe traffic management in public transport areas. In addition, there are many other areas of application, such as logistics markings on factory premises, company or club logos and many other design options. BORNT® road markings are not suitable for indoor markings.
In principle, all traffic signs are possible – here are a few examples:
VZ 206 – Stop! Give way
VZ 255 – No motorcycles, including those with sidecars, mopeds and motorised bicycles
VZ 224 – Bus stop
VZ 267 – No entry
VZ 237 – Cycle path
VZ 240 – Shared footpath and cycle path
VZ 283 – No stopping
When ordering, please specify the size and code, e.g. Ø 600 mm VZ 206.
In principle, all traffic signs are possible – here are a few examples:
VZ 206 – Stop! Give way
VZ 255 – No motorcycles, including those with sidecars, mopeds and motorised bicycles
VZ 224 – Bus stop
VZ 267 – No entry
VZ 237 – Cycle path
VZ 240 – Shared footpath and cycle path
VZ 283 – No stopping
When ordering, please specify the size and code, e.g. Ø 600 mm VZ 206.
type and properties
BORNIT® Road Markings are high-quality and ready-to-use symbols, signs and lettering for road marking.
BORNIT® Road Markings are horizontal traffic signs made of thermoplastic.
BORNIT® Road Markings are horizontal traffic signs made of thermoplastic.
advantages
- ready to use
- short assembly times
- easy handling
- low labour input
surface
The substrate must be solid, clean and mineral. In the case of concrete surfaces, residues of curing agents and thin layers of fine mortar created during production should be removed. Asphalt substrates should not be covered with road markings too early. There is a risk that escaping flux oils will have an adhesion-reducing effect.
processing
The surface should be dry, frost-free, load-bearing and even. Careful sweeping is a prerequisite for good adhesion of the BORNIT® Road Markings. The substrate is briefly preheated with a gas burner. Then the marking is placed on the intended surface and aligned. Now the BORNIT® Road Marking is carefully heated with a gas burner and welded on. Then allow to cool and the road marking is ready to be driven over.
Colours:
Colours:
product data in brief
product type
meltable road marking
base
thermoplastic
density at +20 °C
approx. 1.9 – 2.1 g/cm³
colour(s)
RAL 1004, RAL 1023, RAL 2010, RAL 3013, RAL 3015, RAL 3020, RAL 4003, RAL 4006, RAL 5002, RAL 5012, RAL 5017, RAL 5018, RAL 6018, RAL 6019, RAL 6024, RAL 7042, RAL 7043, RAL 8023, RAL 9016, RAL 9017
Special colours available according to RAL Classic and
dimensions

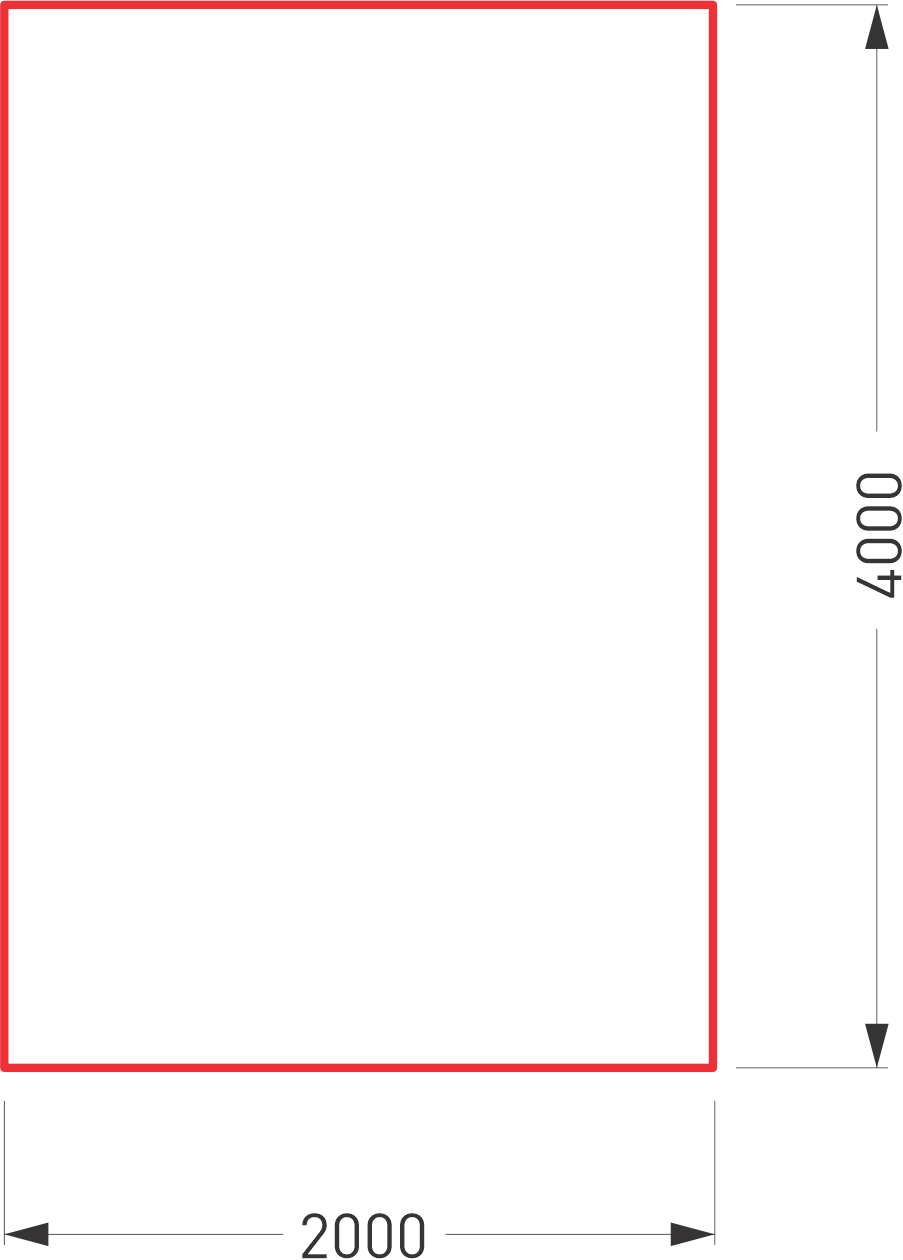

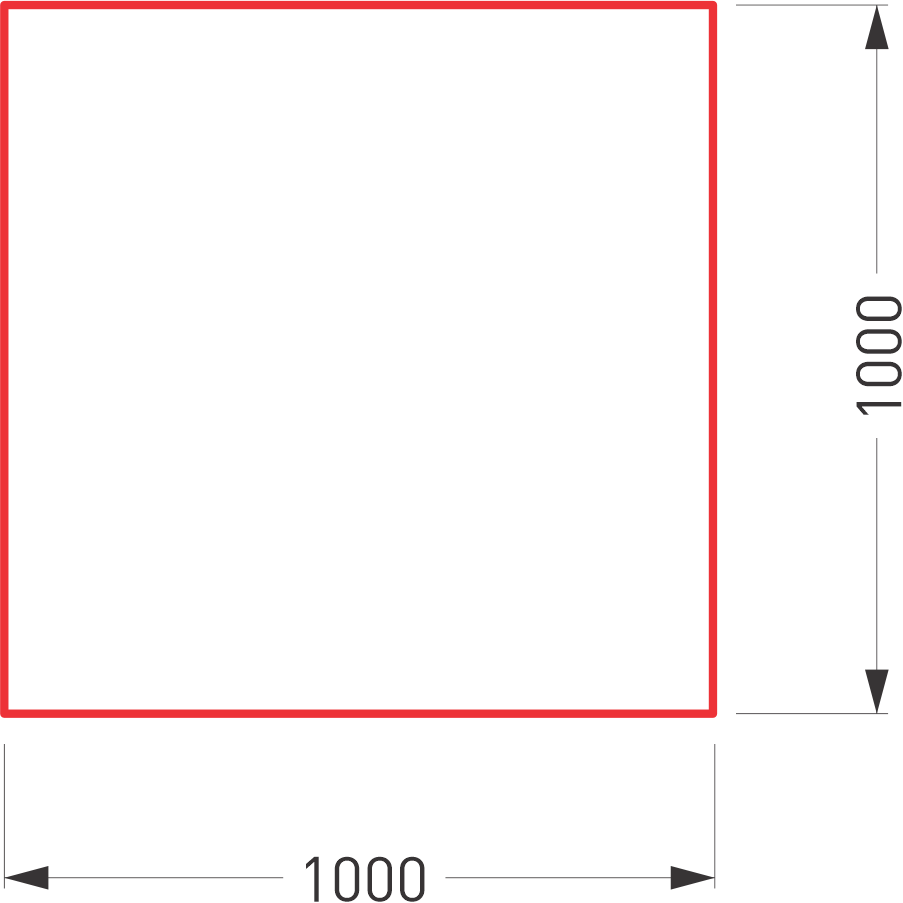

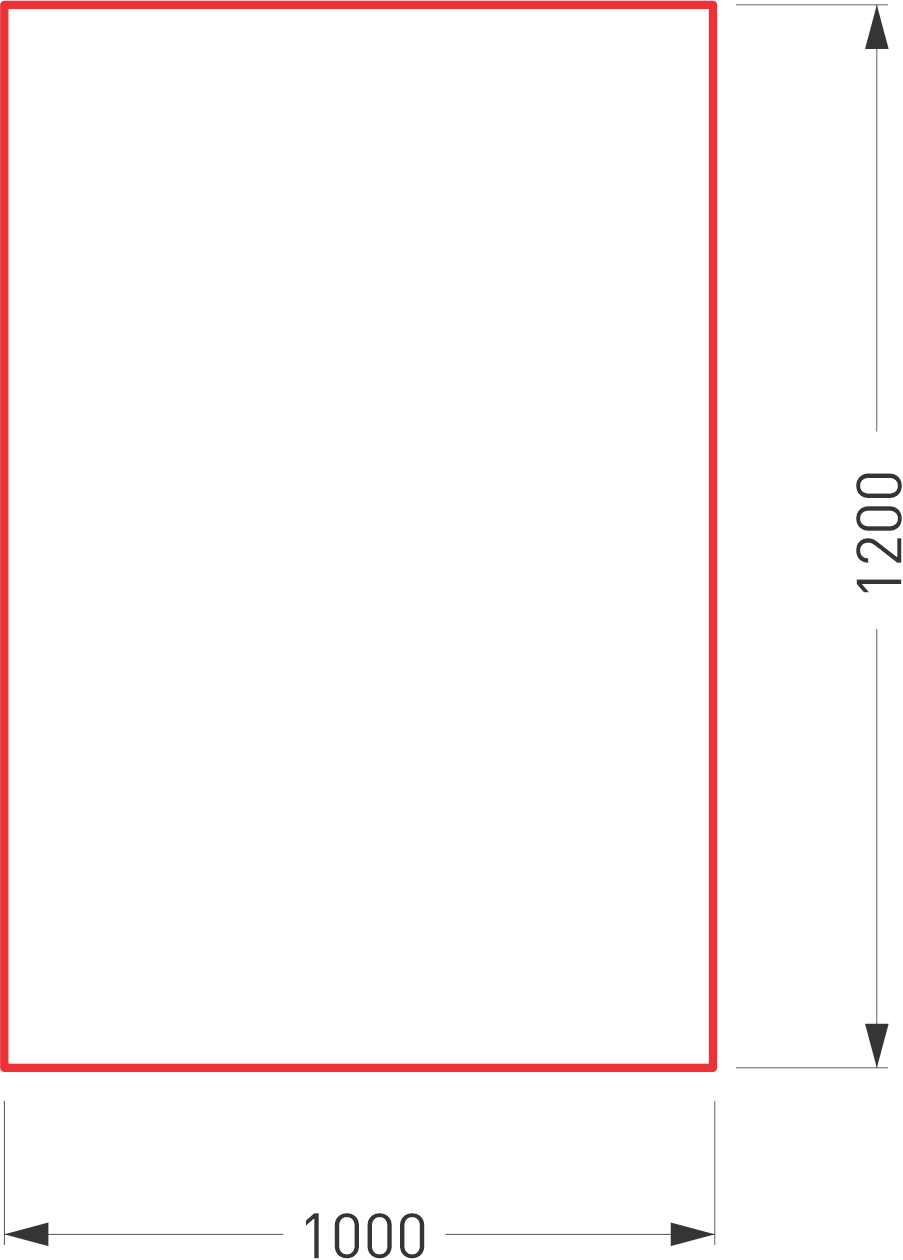

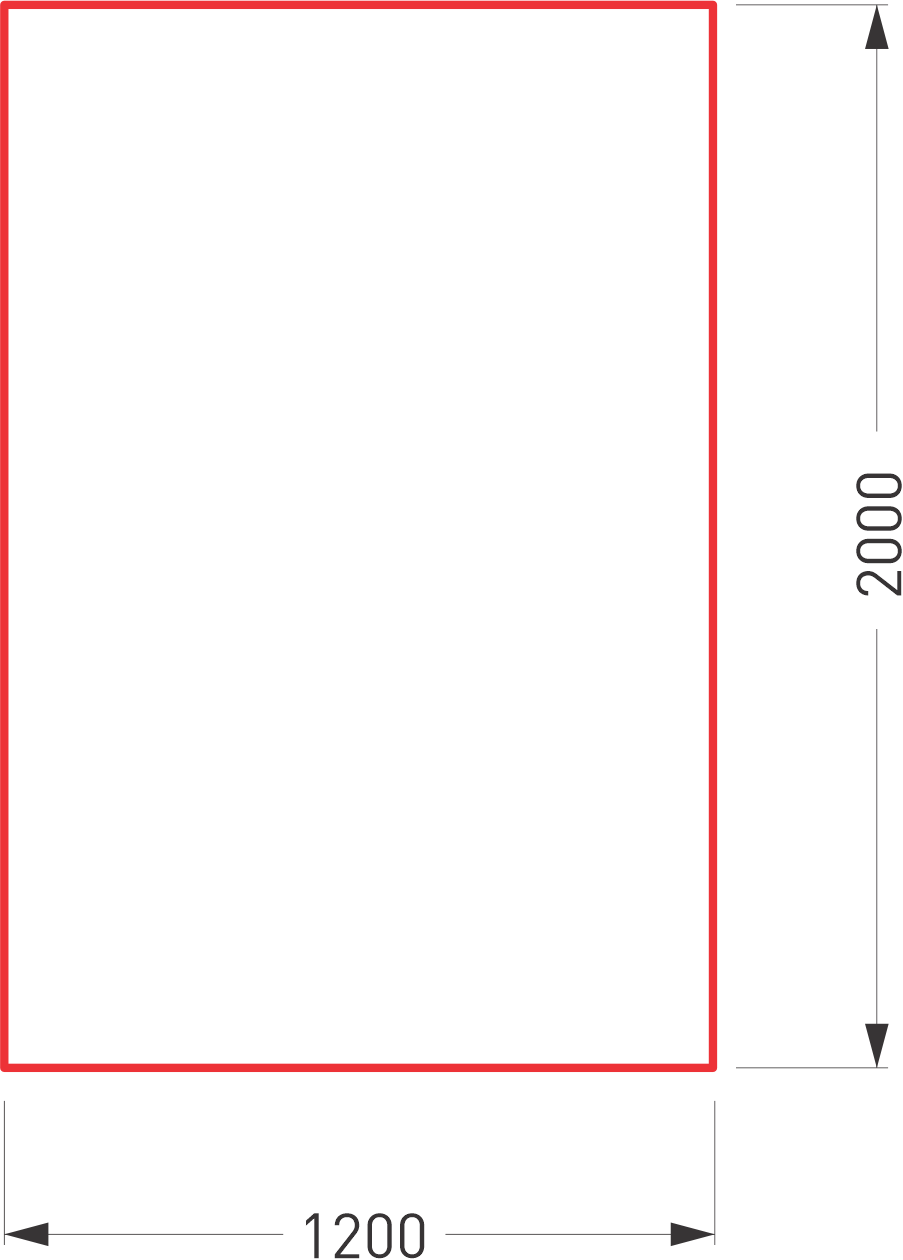

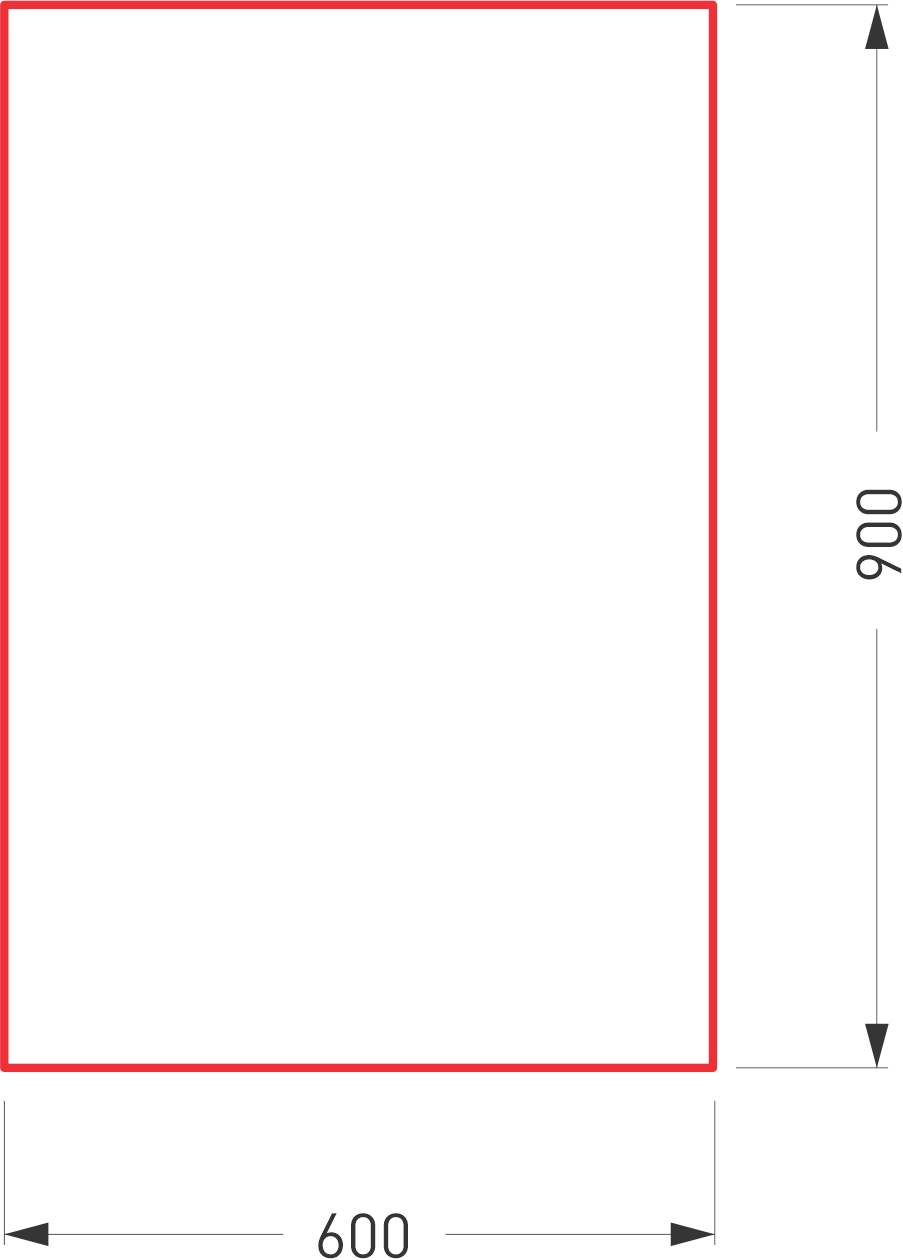

Basic shape: square
application
gas burner
processing temperature (ambient and substrate)
> 0 °C
rainfast
immediately after flaming up
thorough hardening time
can be driven over directly after cooling (10 - 20 minutes)
storage
Store cardboard boxes in a dry place. Do not tilt, store horizontally!
+5 °C to +25 °C
shelf life
Can be stored for 12 months in the original box
hazard class according to ADR
keine
Delivery form
box = VE = 1.020 x 620 x 35 mm on euro pallet
max. 25 boxes per euro pallet
Basic shape
square
health and fire protection, occupational safety
To ensure safe handling of the product, the physical, safety, toxicological and ecological information provided online, the information in the current safety data sheet and the additional information on the label must be read and followed before purchasing or using the product! The applicable regulations, ordinances and laws must be complied with.
In case of doubt, please contact the BORNIT® application technology department or the BORNIT® service hotline on +49 375 2795 123.
In case of doubt, please contact the BORNIT® application technology department or the BORNIT® service hotline on +49 375 2795 123.
storage
Box/packaging must be stored dry and protected from direct solar irradiation.
disposal note
Dispose of material residues according to European Waste Catalogue AVV-ASN: 020104 (Plastic waste (without packaging)).
note
The above information replaces all previous technical information about the product. Thus, this information is no longer valid. The details have been compiled according to the latest state of application technology. Please observe, however, that, depending on the state of the construction object, deviations from the method of application suggested in the datasheet may be required. Unless agreed otherwise in individual contracts, any information contained in the datasheet shall be non-binding and thus does not represent an agreed product constitution. We reserve the right to any changes in the information contained in this datasheet anytime.
