BORNIT® Cold Joint Sealant

joint filler | joint | joint sealing | weather resistance
BORNIT
Short information
  • two-component, polysulphide-based joint sealant
  • for sealing vertical or inclined joints in concrete traffic areas and cut asphalt surfaces
  • permanently elastic
  • stable
Product
Colour
Content

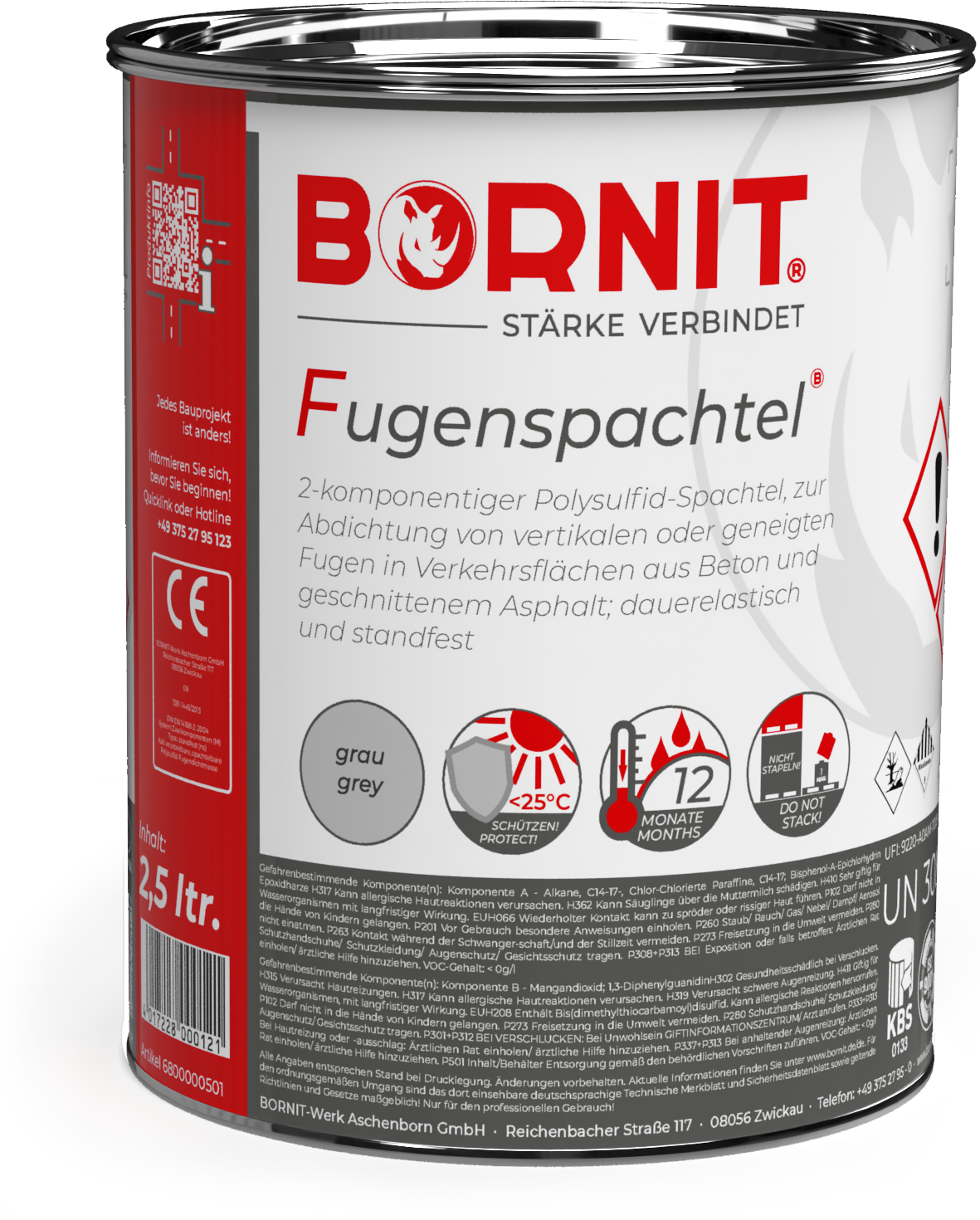

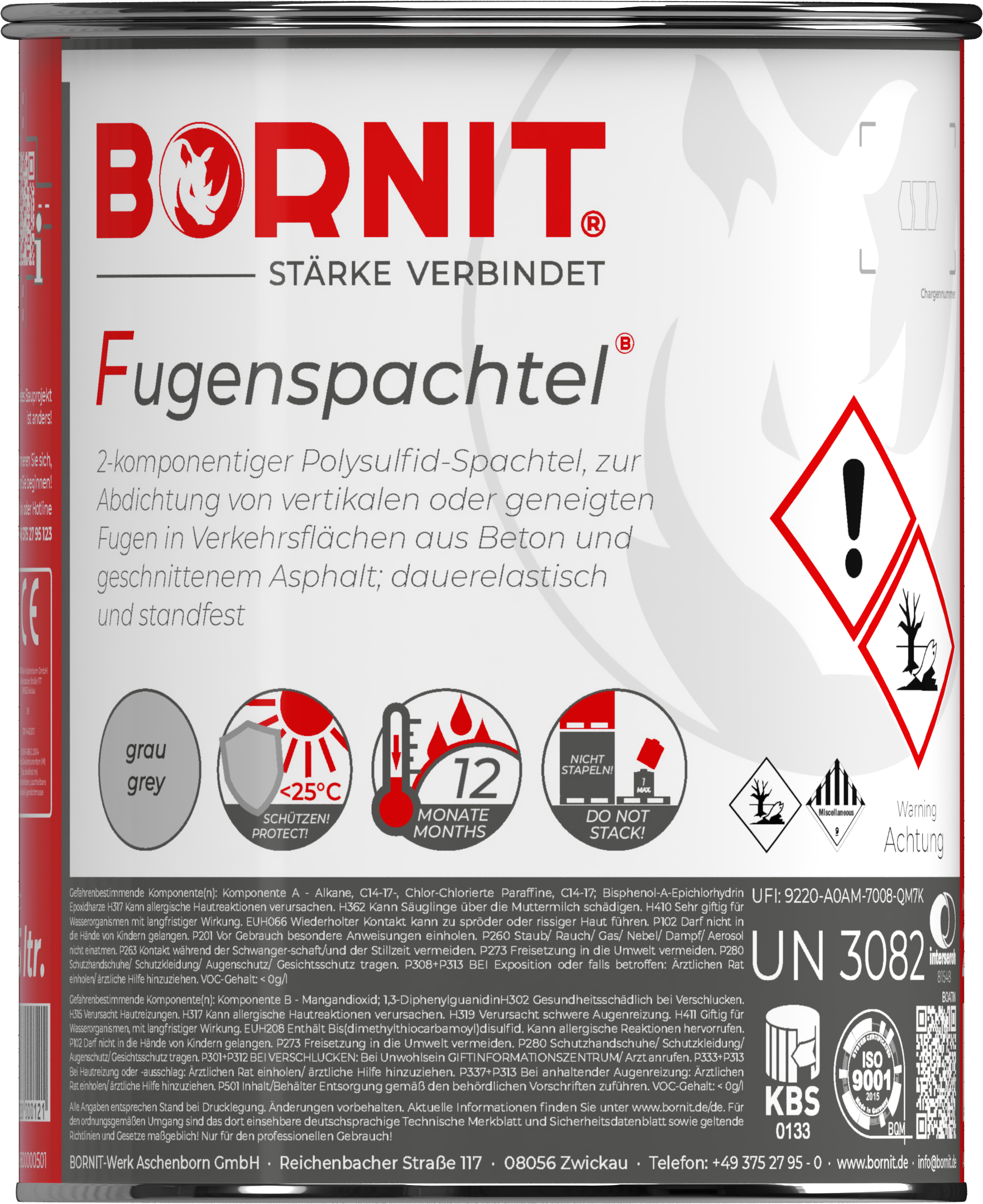

Cold Joint Sealant
grey
2,5 ltr. / can
sufficient for:
Order-No.
EAN code
box
approx. 2.5 ltr. of joint dimension
6800000501
4 017228 00012 1
4 can

euro pallet
30 box

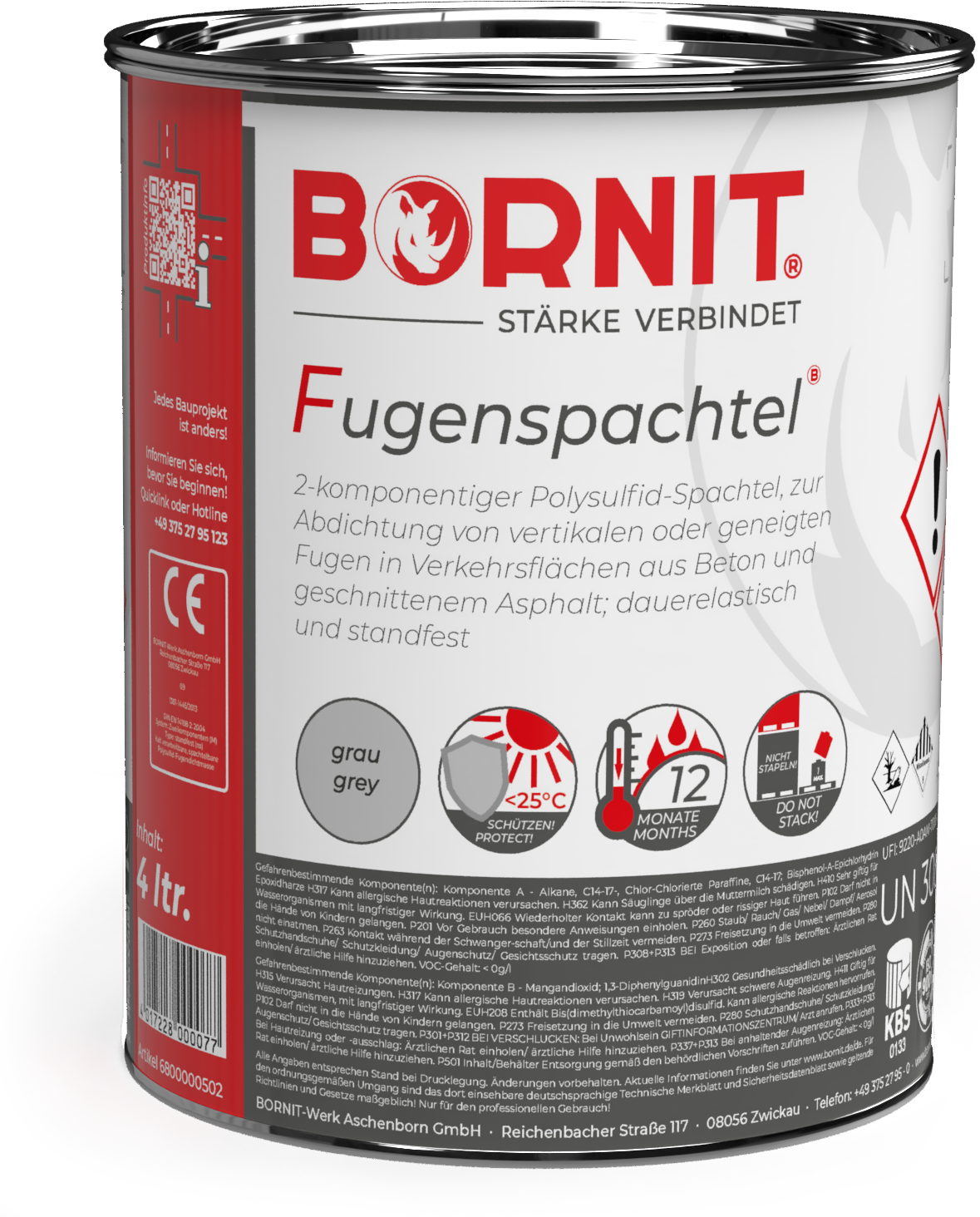

Cold Joint Sealant
grey
4 ltr. / can
sufficient for:
Order-No.
EAN code
box
approx. 4.0 ltr. of joint dimension
6800000502
4 017228 00007 7
4 can

euro pallet
18 box

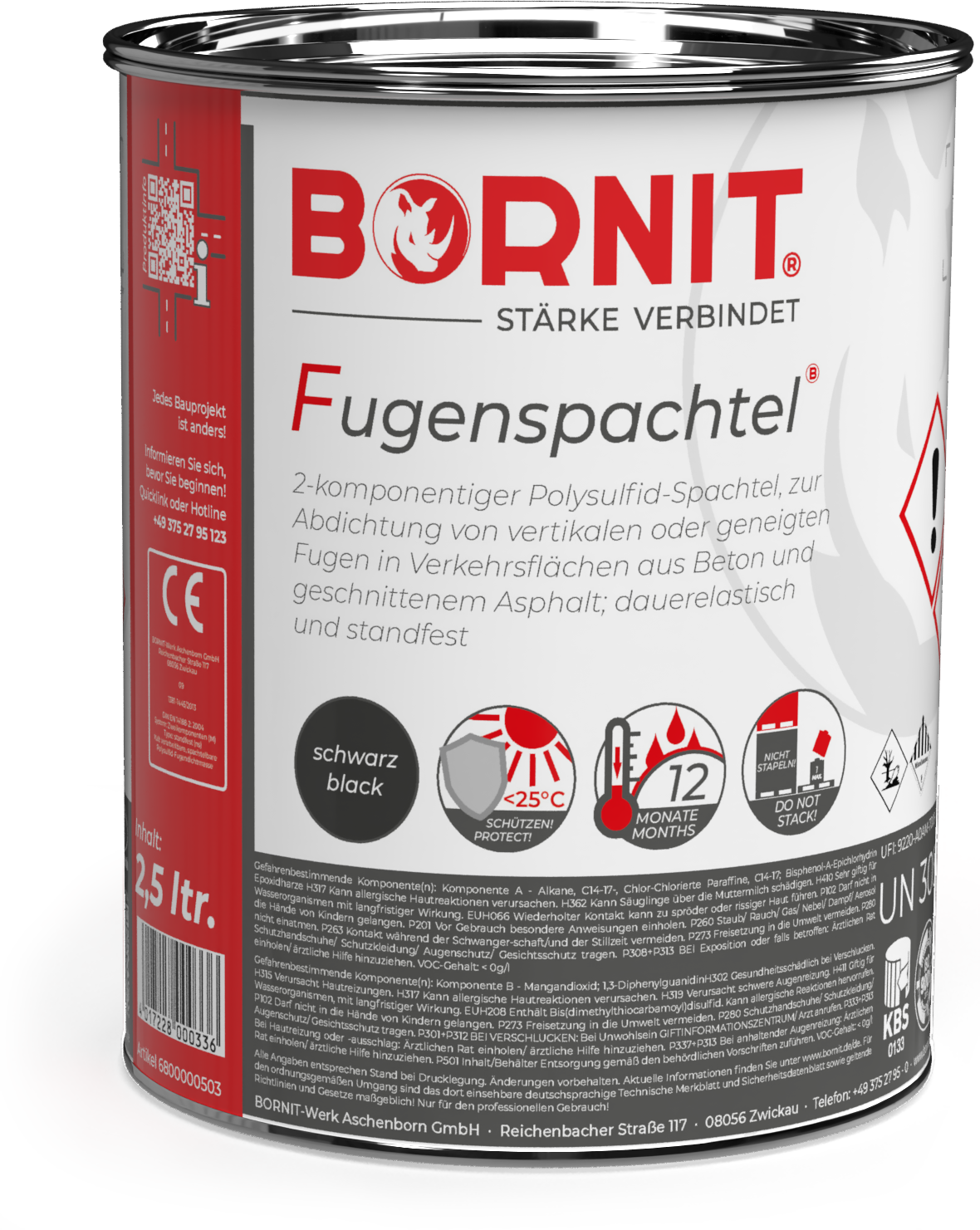

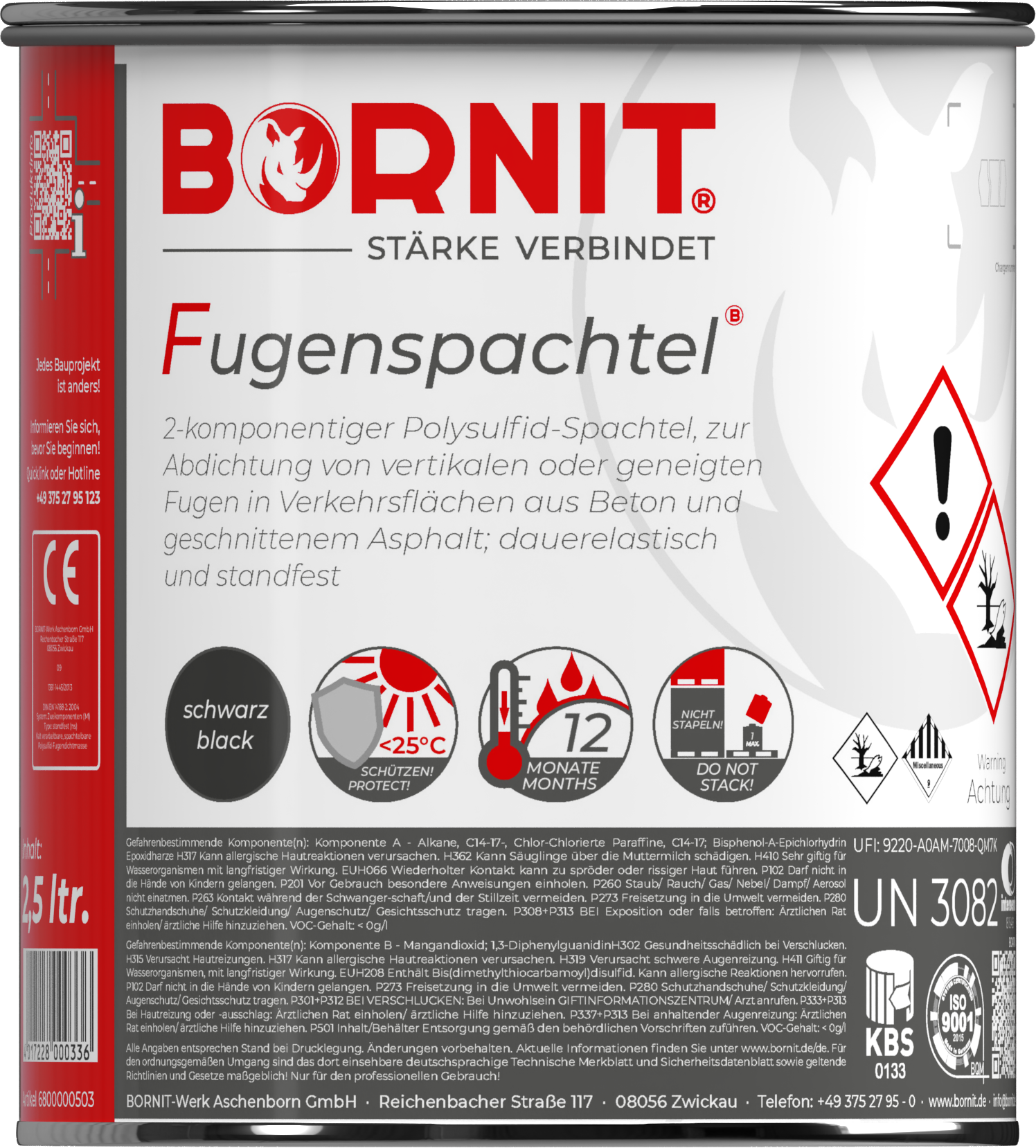

Cold Joint Sealant
black
2,5 ltr. / can
sufficient for:
Order-No.
EAN code
box
approx. 2.5 ltr. of joint dimension
6800000503
4 017228 00033 6
4 can

euro pallet
30 box

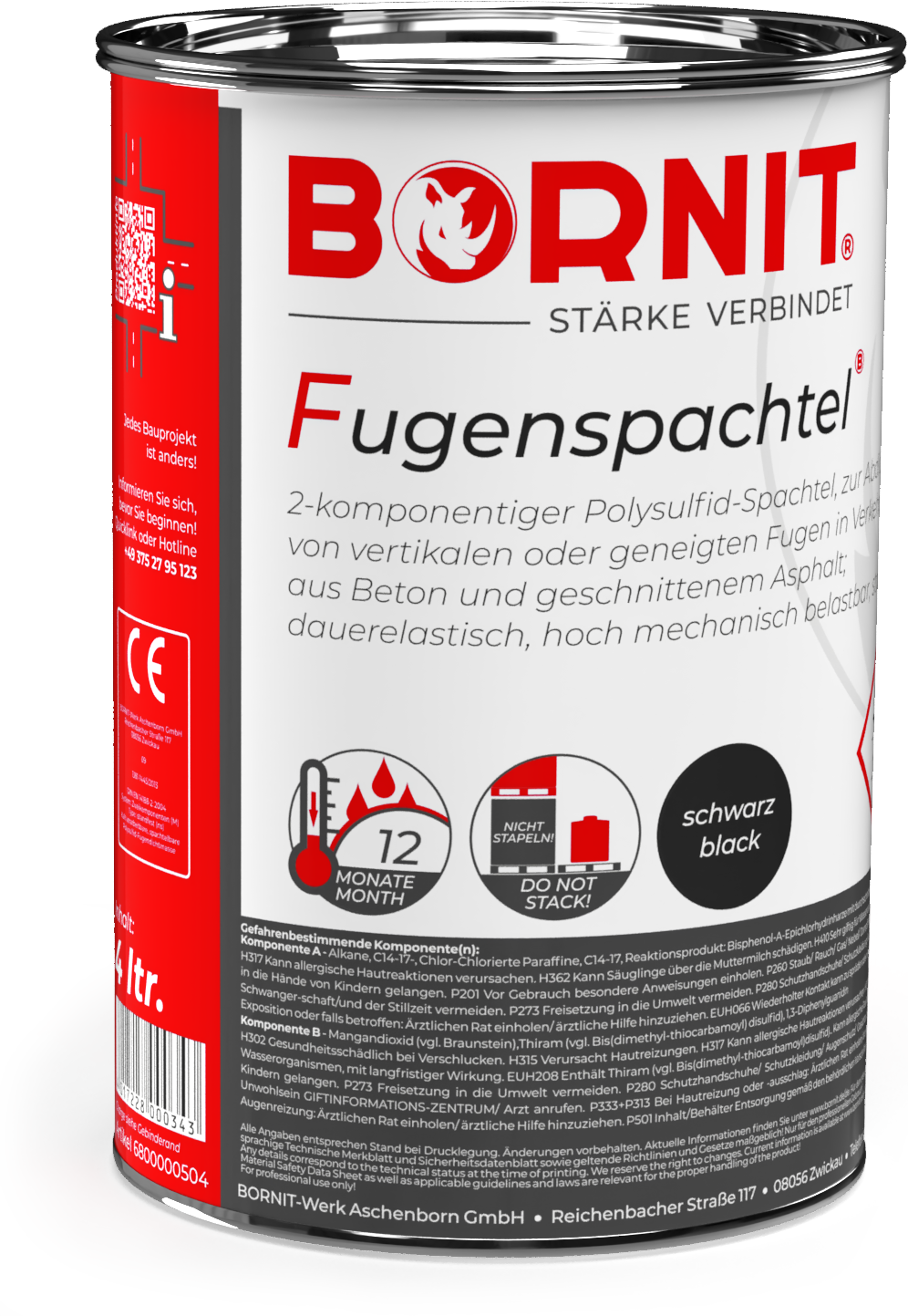

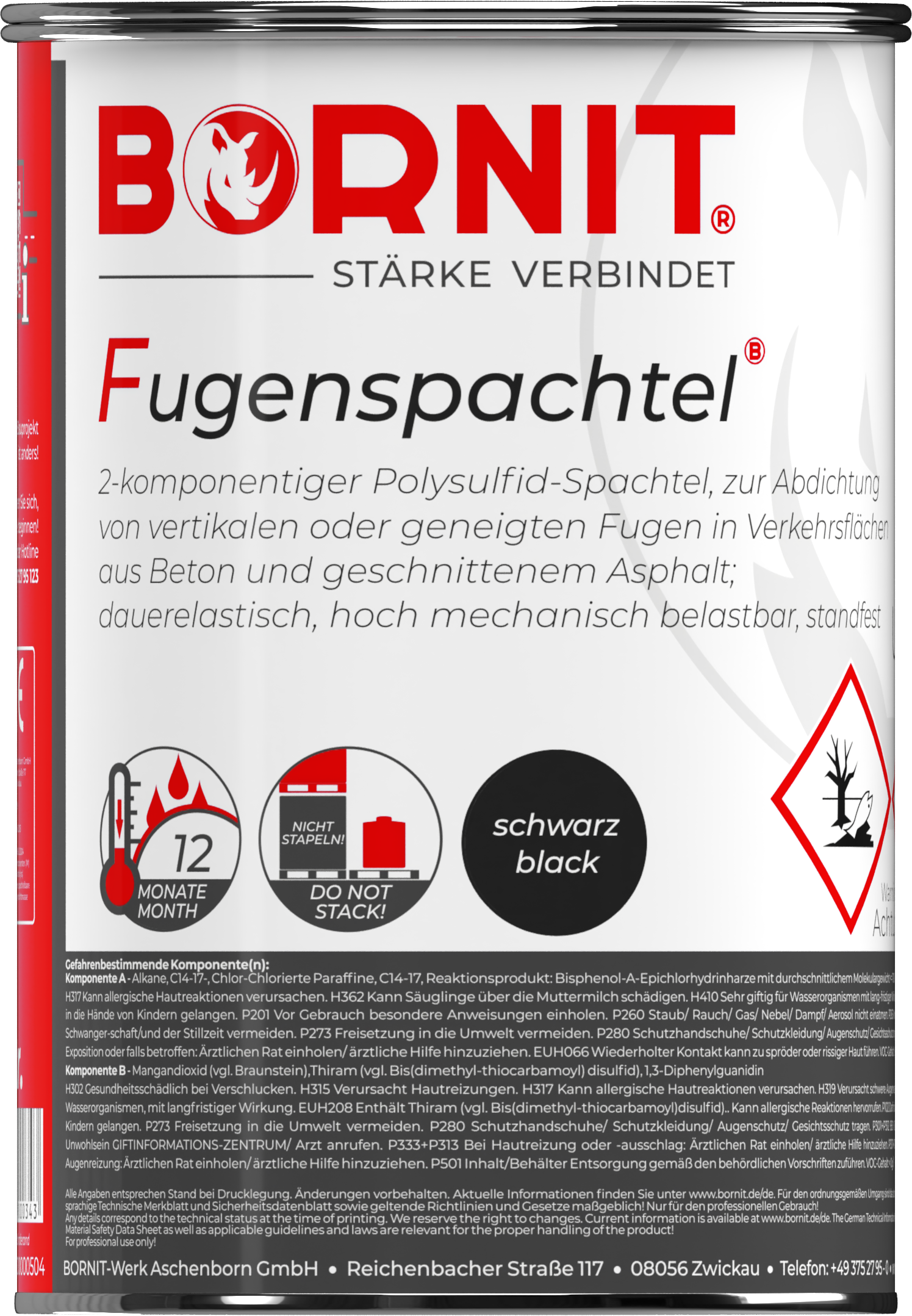

Cold Joint Sealant
black
4 ltr. / can
sufficient for:
Order-No.
EAN code
box
approx. 4.0 ltr. of joint dimension
6800000504
4 017228 00034 3
4 can

euro pallet
18 box
Consumption
depending on joint dimension
Storage note
  • dry, cool (below +25 °C)
  • in originally sealed containers storable for 12 months

Status technical data sheet
01 December 2020

Areas of application
BORNIT® Cold Joint Sealant is used for sealing vertical or inclined joints in concrete traffic areas and cut asphalt surfaces. BORNIT® Cold Joint Sealant reliably seals joints against the penetration of water pollutants into the ground. In particular, it is suitable for sealing joints in road, bridge and tunnel construction as well as in the basement and base area.
BORNIT® Cold Joint Sealant is suitable for sealing floor or ground-level joints between concrete elements as well as concrete components and asphalt surfaces subject mechanical stresses (vehicle and pedestrian traffic), chemical stresses from de-icing salts and temperature-dependent movements of the components. Upon use in concrete surfaces, BORNIT® Cold Joint Sealant can also be subjected to chemical stresses from fuels.
Horizontal joints with an inclination of less than 3 % should be sealed with the self-levelling BORNIT® Cold Sealing Compound. The joint sealant must not be used for joints, which are permanently under the surface of liquids (e.g. in swimming pools, clarification tanks) or are exposed to strongly oxidising acids and bases, as well as for joints in facilities for storing, filling and transhipping of water pollutants (called LAU plants) and for glass sealing.

Type and properties
BORNIT® Cold Joint Sealant is an elastic, stable, two-component, polysulphide-based joint sealant for joints with an elasticity of up to 35 % of the joint width. In the hardened state, BORNIT® Cold Joint Sealant results in elastic joint sealing with very good weather and ageing resistance and high mechanical strength. BORNIT® Cold Joint Sealant corresponds to DIN EN 14188-2.

Advantages
  • very flexible
  • waterproof and UV-resistant
  • universally applicable
  • less equipment, material and labor required for processing

Surface
The joint flanks must be clean, dry, firm, and free of grease and dust. Asphalt flanks must be freshly cut. The joint widths must be matched to the expected movement

Processing
The bonding surfaces of the joints to be sealed must be cleaned from dirt, dust, greases, oils, bitumen and loose particles. For the correct depth, and in order to avoid adhesion on three surfaces, the joints are clamped and backfilled with foamed PE-based round material (closed-cell round PE profile) (BORNIT® Round Cord). Should this not be possible, the joint base must be covered with a separating material (PE sheet, silicone paper or the like).
Subsequently, for concrete joints, thoroughly mixed BORNIT® Concrete Primer must be uniformly applied to the dry fusion faces. After a flash-off time of 0.5-2 hours (depending on the temperature, the primer should not be completely dry), BORNIT® Cold Joint Sealant can be inserted. The BORNIT® Concrete Primer should not be completely dried off. If more than 24 hours should have passed, the primer layer must be roughened and new primer applied.

Asphalt joints must be primed with BORNIT® Asphalt Primer. The asphalt joints must be freshly cut, since adhesion problems would otherwise result. The components A and B are mixed thoroughly and the primer is uniformly applied with a brush. After a flash-off time of 2 to 6 hours (component temperature > +25 °C approx. 2 hours, < +10 °C approx. 6 hours), the sealant can be introduced. The asphalt primer should have dried as far as possible. It must be observed that no moisture film has formed on the primer surface due to undercutting of the dew point. For BORNIT® Cold Joint Sealant, the components A and B are both contained in one container in layers and not packaged separately. First mix the components (layers) with a suitable tool (slow-speed drill with mixing paddle stirrer), until there are no colour streaks anymore. Now insert the joint sealant into the joint with suitable tools (e.g. manual or compressed air guns) and smooth it with a spatula, smoothing stick or the like within the processing time. Prior to mixing, the temperature of the sealant should be min. +10 °C. The component temperature must not be below +5 °C and not above +40 °C. Until reaching the full load-bearing capacity, a thorough hardening time of min. 48 hours at +20 °C ground and materials temperature must be complied with.

Consumption
depending on joint dimension

Product data in brief
Product type
two-component polysulphide-based joint sealant
Density at +20 °C
1.65 g/cm³
Consistency
stable, spatula-applicable
Colour(s)
grey, black
Application
spatula, trowel, smoothing trowel, manual or compressed air guns
Processing temperature (ambient and substrate)
+10 °C to +35 °C
Processing time
approx. 2 hours (+23 °C, 50 % humidity)
Thorough hardening time
approx. 24 hours (+23 °C, 50 % humidity)
Cleaning
BORNIT® PS Cleaner
Storage
dry, cool (below +25 °C)
Shelf life
in originally sealed containers storable for 12 months
VOC category
Component A:
Component B:
Actual permissible VOC content
Component A: 0 g/ltr.
Component B: 0 g/l
Hazard class according to ADR
keine

Tensile stress
approx. 0.3 N/mm²
Max. admissible deformation
35 % of the joint width
Shore A hardness
approx. 20

Health and fire protection, occupational safety
For information on handling, safety and ecology, please refer to the current safety datasheet.

Storage
The product can be stored for 12 months original sealed container at storage temperatures below +25 °C.

Disposal note
Only recycle completely empty containers. Material residues of component A + B can be disposed of according to AVV-ASN: 080409 * (adhesive and sealing compound residues containing organic solvents or other hazardous substances).

Note
The above information replaces all previous technical information about the product. Thus, this information is no longer valid. The details have been compiled according to the latest state of application technology. Please observe, however, that, depending on the state of the construction object, deviations from the method of application suggested in the datasheet may be required. Unless agreed otherwise in individual contracts, any information contained in the datasheet shall be non-binding and thus does not represent an agreed product constitution. We reserve the right to any changes in the information contained in this datasheet anytime.

BORNIT-Werk Aschenborn GmbH
Reichenbacher Straße 117
08056 Zwickau / Germany

2009

1381-1445/2013

DIN EN 14188-2:2004
System: Two-component (M) / Type: stable (ns)
Cold workable, spatula-applicable polysulphide-based joint sealant

Adhesive capacity and expansibilityTensile modulus at 100 % expansion: at +23 °C ≥ 0.15 MPa at -20 °C ≤ 0.6 Mpa
Adhesive capacityPassed at -20 °C ≤ 0.6 Mpa
Water impermeabilityTensile modulus at 100 % expansion: at 23 °C ≥ 0.15 MPa at -20 °C ≤ 0.6 Mpa No failure at -20 °C ≤ 0.6 Mpa
Resistance to deformationResilience ≥ 70 % Loss in volume ≤ 5 %
Durability of water impermeability when exposed to chemicalsPassed
Durability of all mandated properties against ageingChange in the tensile modulus at 100 % expansion: ± ≤ 20 %
Flame resistancePassed

UFI 9220-A0AM-7008-QM7K
