BORNIT® Injektil 100

horizontal barriers | rising moisture | concrete | masonry | plaster
short information
  • easiest handling because it is ready to use
  • very good penetration
  • solvent-free injection agent
  • against rising, capillary masonry dampness up to max. 65 % and a max. wall thickness of 0.70 m
  • can be applied via non-pressurised injection
  • as well as via pressure injection
Injektil 100
1 ltr. / bottle
sufficient for:
EAN code
0.05 m² of masonry cross-section
4 017228 00403 7
20 bottle
Injektil 100

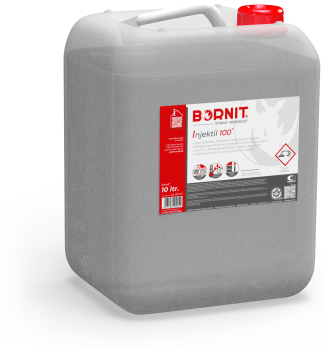

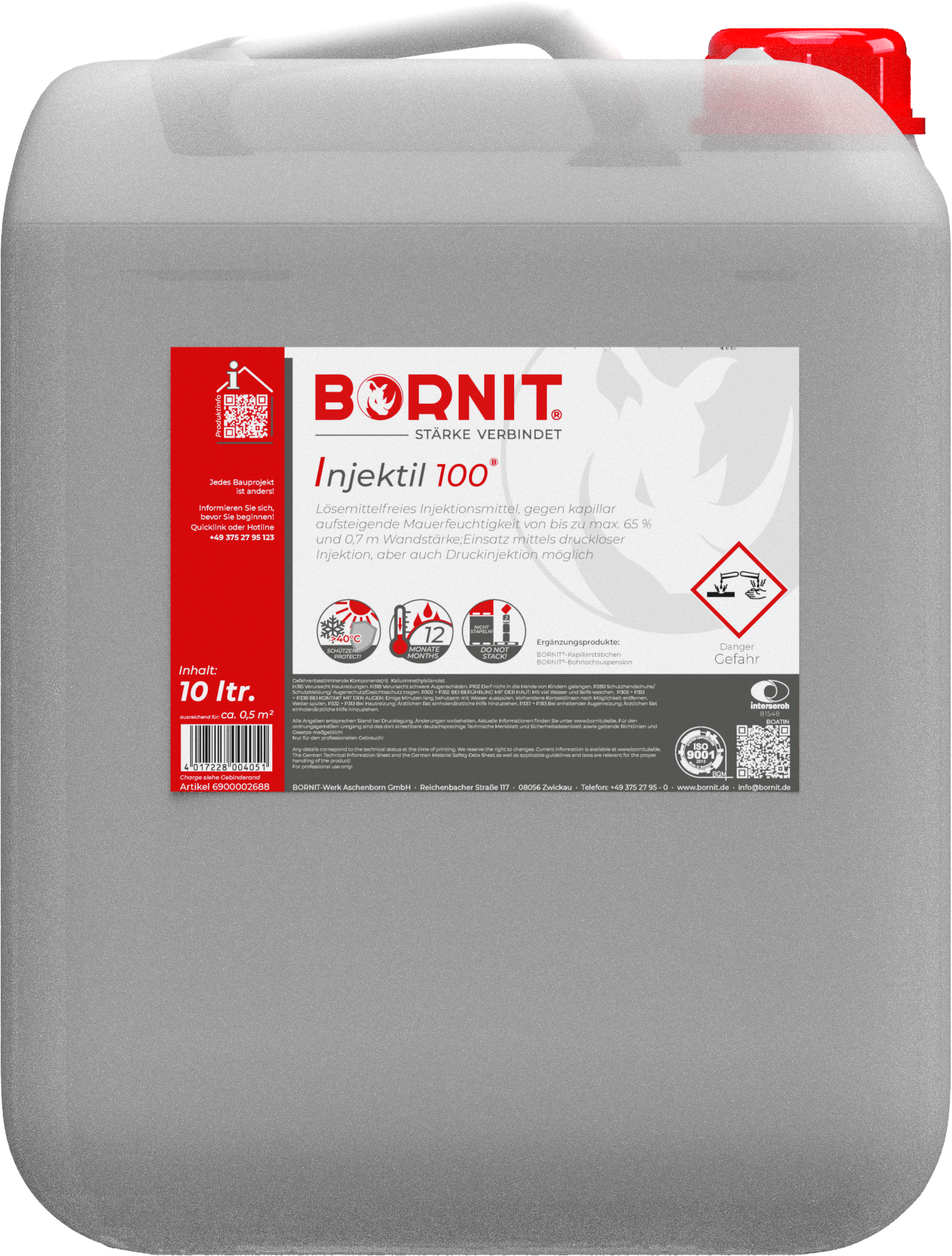

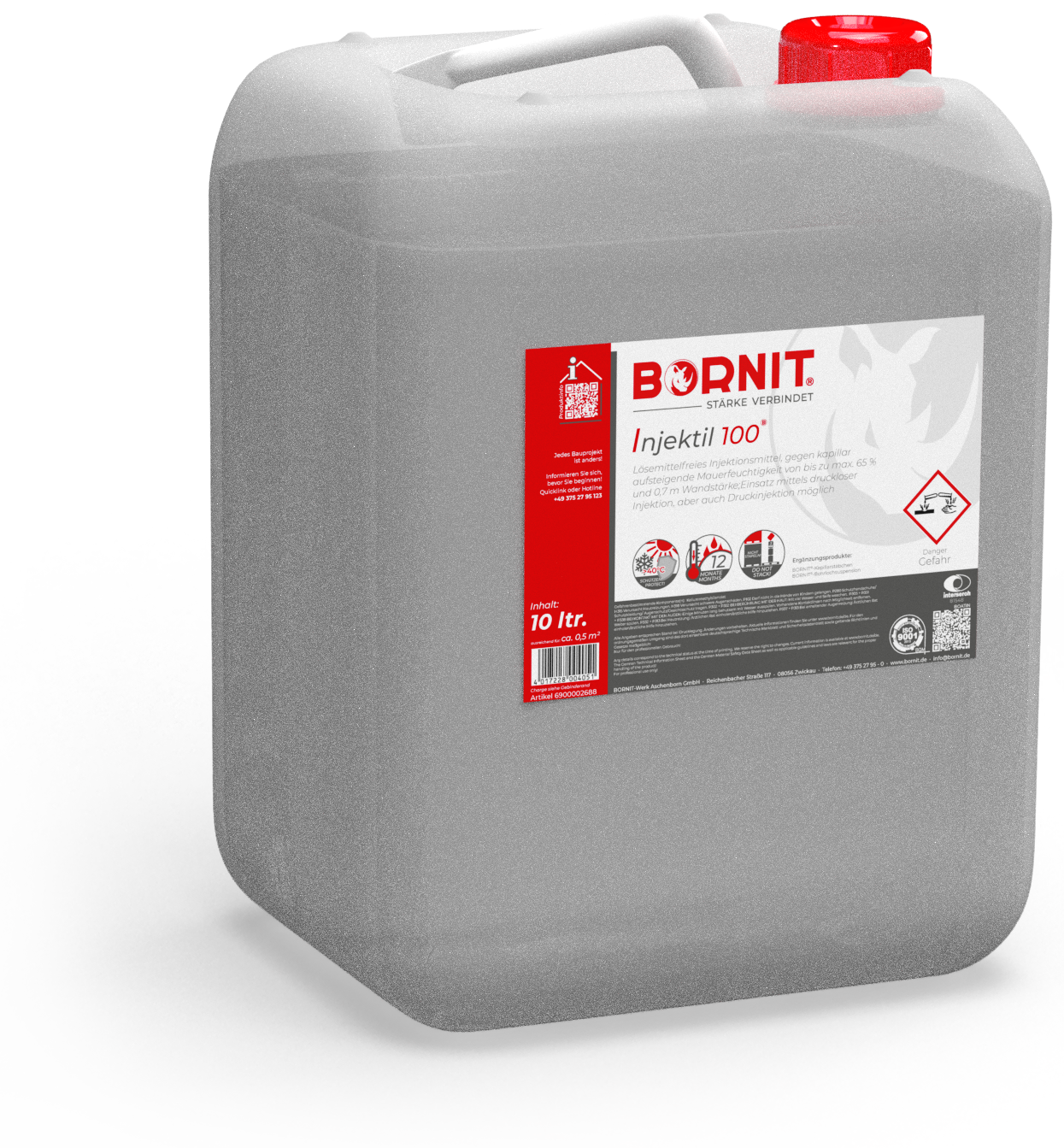

10 ltr. / canister
sufficient for:
EAN code
euro pallet
0.5 m² of masonry cross-section
4 017228 00405 1
60 canister
Injektil 100

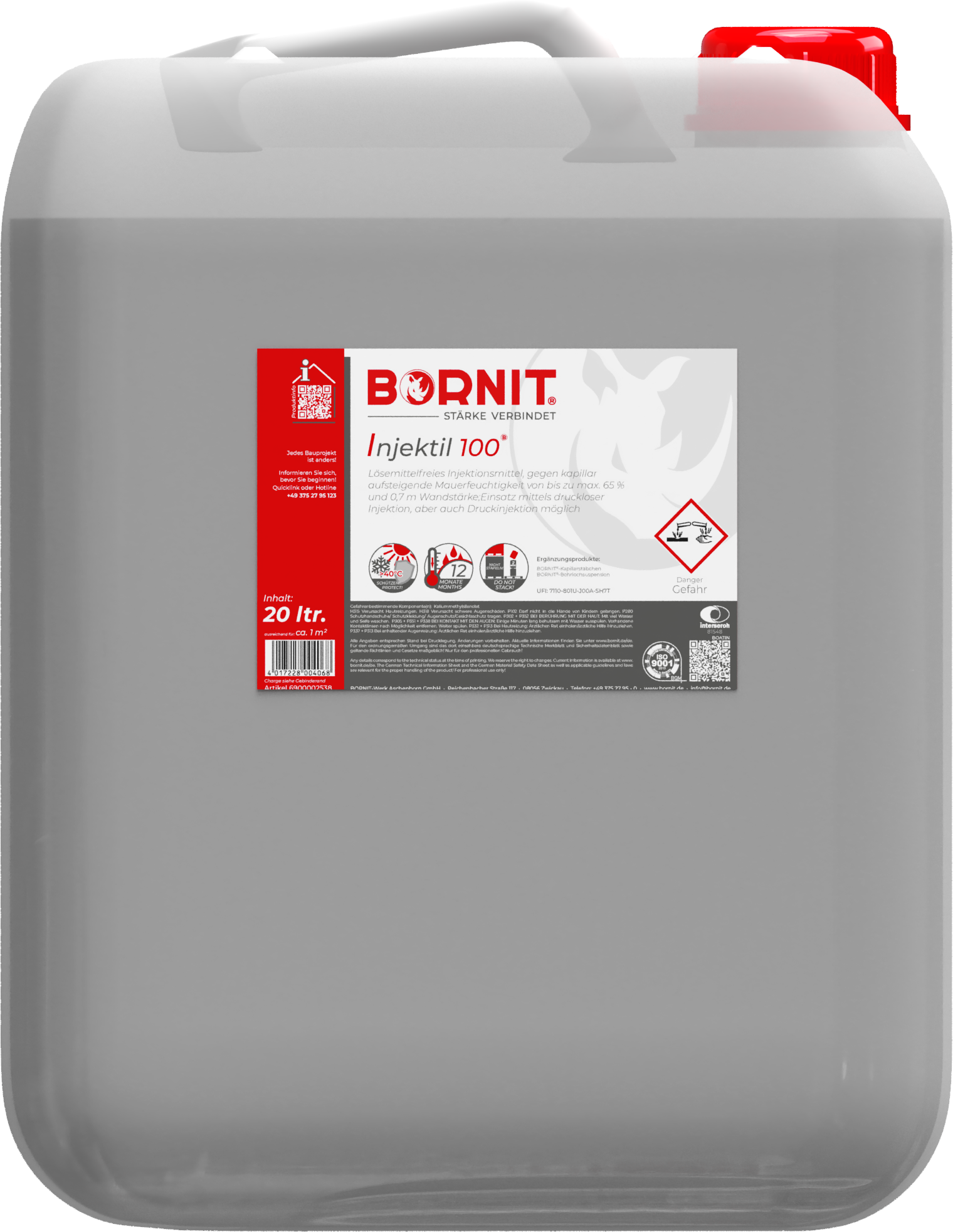

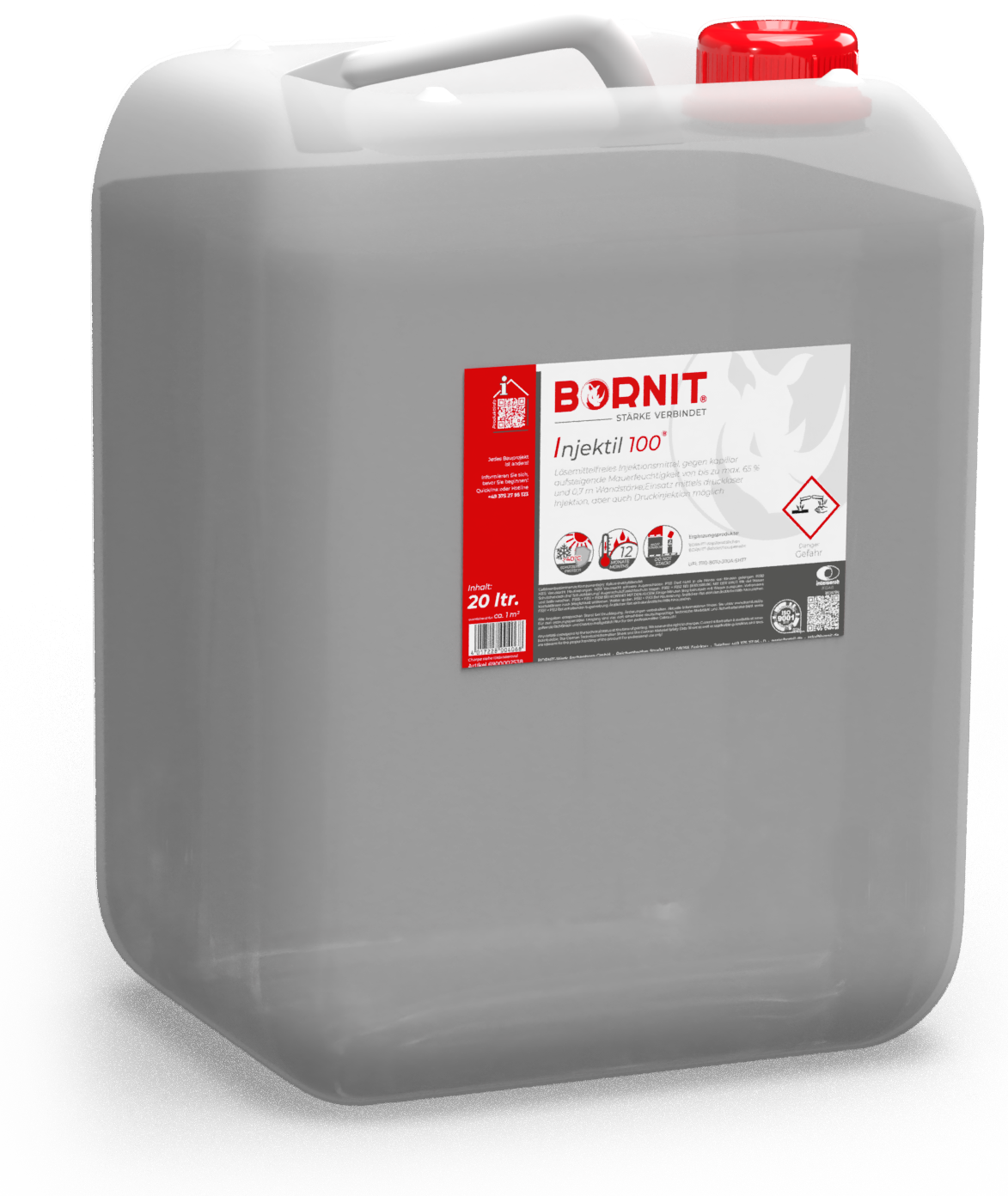

20 ltr. / canister
sufficient for:
EAN code
euro pallet
1 m² of masonry cross-section
4 017228 00406 8
24 canister
approx. 20 l per m² of masonry cross-section, depending on moisture content, thickness and condition of the masonry.
storage note
  • store frost-free and below +40 °C
  • storable for 12 months

status technical data sheet
13 November 2020

areas of application
BORNIT® Injektil 100 is used to subsequently provide horizontal barriers against rising moisture in concrete, masonry and plaster. The product can be applied via non-pressurised, chemical injection as well as via pressure injection.
The structure of the building material must be firm and well preserved, since BORNIT® Injektil 100 does not have any material solidifying properties.
Use of the injection agent is possible up to a degree of moisture penetration of max. 65 % and a max. wall thickness of 0.70 m.

type and properties
BORNIT® Injektil 100 is a thin liquid injection agent based on a water-repellent siliconate.

  • easiest handling because it is ready to use
  • very good penetration
  • economical and cost-reducing as there is less equipment, material and labor

The building material structure must be solid and well preserved, as BORNIT® Injektil 100 has no building material-strengthening properties.

For chemical injection, BORNIT® Injektil 100 is used undiluted (as delivered). It contains potassium hydroxide and therefore undergoes an alkaline reaction. Therefore, eyes, skin and clothing must be protected from splashes. Sensitive surfaces (e.g. aluminium and glass) can be slightly etched. Immediately remove splashes with a lot of water. Chemical injections are normally inserted at base height (above ground) as well as in the basement area above the pressure and retained water lines.
For the provision of horizontal waterproofing, holes are drilled into the substrate to be treated above the ground or, upon excavation, above the basement floor.
Should fractures, voids or open joints be noticed after drilling the holes, the holes must be filled with BORNIT® Drill Hole Filler, wherein the thin liquid mortar must be pressed in. Prior to thorough hardening (after approx. 30 minutes up to max. 3 hours), the holes must be drilled again.
The distance of the drill-holes depends on the absorbency of the building material. In case of strong absorbency of the material, the distance of the drill-holes can be larger, with lesser absorbency smaller. In principle, however, it should be max. 120 mm. For non-pressurised injection, the drill-hole diameter is approx. 12-16 mm, the drilling angle (inclined from top to bottom) between 45 ° and 30 °. The drill-hole depth should correspond to the wall thickness minus 5 cm.
Remove the drilling dust prior to injection. Walls with a thickness of more than 0.5 m as well as corners should be treated from both sides. In case of higher wall thicknesses, the reaction until the water repellency becomes effective is greatly delayed. Non-pressurised injection is performed using a suitable watering can and always wet in wet until saturation and termination of the absorption of the impregnation agent (depending on the type of masonry) are achieved.
It is likewise possible to impregnate the masonry from dispensing bottles with a spout. For that, smaller drill-hole diameters are sufficient.
For pressure injection, which should preferably be performed in the low-pressure range, the drill-hole diameters depend on the specified packers.

Additional measures
Following execution of a chemical masonry injection against capillary rising masonry moisture, make sure that water cannot penetrate the masonry above the injection area anymore. For that, the plaster must be renewed with the respective necessary substrate pre-treatment and vertical waterproofing of the outer surfaces in contact with the ground. If the plaster is salt-damaged, it should be stripped after the treatment and replaced with renovation plaster. Structurally damaging salts must be neutralised with BORNIT® Anti Sulphate.
The operating principles and procedures are described in WTA data sheet 4-4-04 / D ""Masonry injections against capillary moisture"", including the necessary accompanying measures.

approx. 20 l per m² of masonry cross-section, depending on moisture content, thickness and condition of the masonry.

product data in brief
special silanes
density at +20 °C
approx. 1.02 g/cm³
processing temperature (ambient and substrate)
from +5°C
store frost-free and below +40 °C
shelf life
storable for 12 months
hazard class according to ADR
boiling start and Boiling range
+100 °C
health and fire protection, occupational safety
To ensure safe handling of the product, the physical, safety, toxicological and ecological information provided online, the information in the current safety data sheet and the additional information on the label must be read and followed before purchasing or using the product! The applicable regulations, ordinances and laws must be complied with.

In case of doubt, please contact the BORNIT® application technology department or the BORNIT® service hotline on +49 375 2795 123.

At temperatures below +40 °C and frost-free, storable for 12 months.

disposal note
Only recycle completely empty containers. Material residues can be disposed of according to AVV-ASN: 060205* (other bases).

The above information replaces all previous technical information about the product. Thus, this information is no longer valid. The details have been compiled according to the latest state of application technology. Please observe, however, that, depending on the state of the construction object, deviations from the method of application suggested in the datasheet may be required. Unless agreed otherwise in individual contracts, any information contained in the datasheet shall be non-binding and thus does not represent an agreed product constitution. We reserve the right to any changes in the information contained in this datasheet anytime.
BORNIT<sup class=® Injektil 100, injection agent, rising moisture, horizontal barrier">
BORNIT<sup class=® Injektil 100, injection agent, rising moisture, horizontal barrier">

UFI 7110-801U-J00A-SH7T

Safety Data Sheet Poison Information Centre , 24h: +49-361-730730

ERFURT - Poison Control Centre Erfurt, Joint Poison Information Centre of the federal States of Mecklenburg-Western Pomerania, Saxony, Saxony-Anhalt and Thuringia; ggiz@ggiz-erfurt.de; www.ggiz-erfurt.de

-     What: name of the substance or product as precisely as possible, etc.
-     How much: as exact a quantity as possible
-     Who: Age, weight, sex and condition of the person(s) concerned.
-     When: Time of the event
-     Where: Place of occurrence
-     How: ingestion, inhalation, skin contact, etc.
-     Why: accidentally or intentionally

No dangerous good in sense of these transport regulations.

Hazard pictograms

signal word

Hazard-determining components for labelling

H315: Causes skin irritation.
H318: Causes serious eye damage.

P102: Keep out of reach of children.
P280: Wear protective gloves/protective clothing/eye protection/face protection/hearing protection.
P302 + P352: IF ON SKIN: Wash with plenty of water and soap.
P305 + P351 + P338: IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing.
P332 + P313: If skin irritation occurs: Get medical advice/attention.
P337 + P313: If eye irritation persists: Get medical advice/attention.

recommended, personal protective equipment:
