BORNIT^® Crack Module SpeedUp

status technical data sheet

28th September 2021

Areas of application

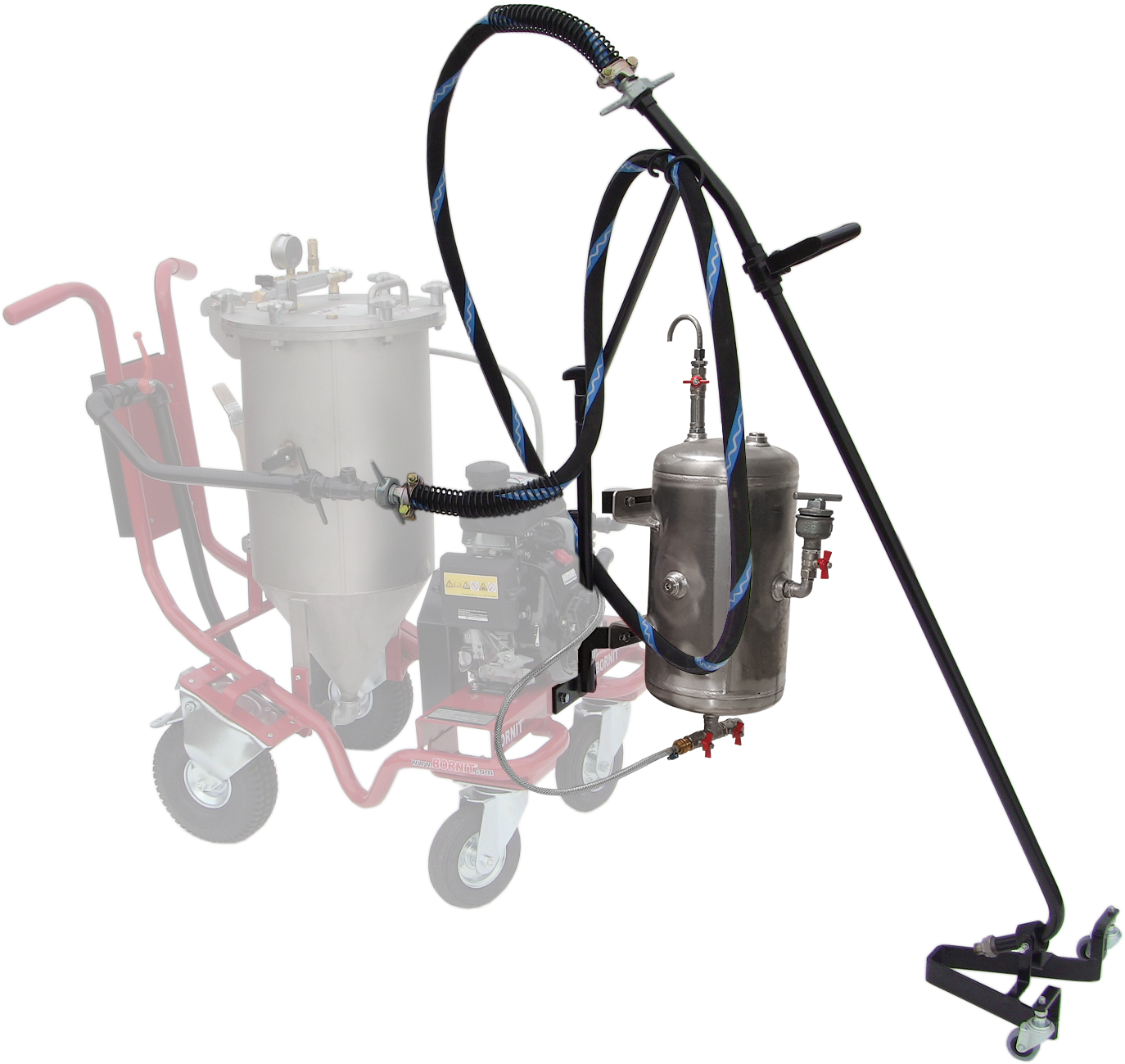

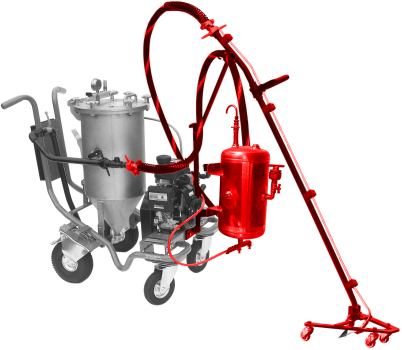

Add-on module for the BORNIT^® Flexomat 3.1; used for the rapid and clean application of BORNIT^® Crack Flex and BORNIT^® SpeedUp.

Type and properties

For the machine rehabilitation or sealing of cracks in asphalt road construction using the cold method.

Processing

The SpeedUp container is screwed to the module plate at the front of the BORNIT^® Flexomat 3.1 with screws.
The hose for material transport is connected by means of a union nut to the intended thread of the material discharge pipe of the Flexomat (right side in the centre of the pressure vessel).
The spray head cart is guided along the crack depending on its course.

Product type

add-on module

Base

Basic unit - BORNIT^® Flexomat 3.1

colour(s)

black

Application

BORNIT^® Flexomat 3.1

Processing temperature (ambient and substrate)

frost-free

Cleaning

BORNIT^® MultiClean Spray, BORNIT^® MultiClean or BORNIT^® Bitumen Cleaner

storage

Store the crack module in a dry and frost-free place! The nozzle must be cleaned thoroughly after use and protected against drying out. If stored for a short time (max. 2 weeks), the material can remain in the system.

Hazard class according to ADR

keine

Tank size

20 liter

Tube length

4 m

Health and fire protection, occupational safety

To ensure safe handling of the product, the physical, safety, toxicological and ecological information provided online, the information in the current operating instructions and the additional information on the label must be read and followed before purchasing or using the product! The applicable regulations, ordinances and laws must be complied with.

In case of doubt, please contact the BORNIT^® application technology department or the BORNIT^® service hotline on +49 375 2795 123.

Storage

The module must be stored in a dry place and protected from frost.

Note

The information set out above supersedes all previous technical information relating to the product. The previous information is therefore no longer valid. The details have been compiled in accordance with the latest state of the art in application technology. Please note, however, that depending on the condition of the building, it may be necessary to deviate from the working method recommended in this data sheet. Unless otherwise agreed in an individual contract, all information contained in this data sheet is non-binding and therefore does not constitute an agreed product specification. We reserve the right to make changes to the information contained in this data sheet at any time.

The product illustrations are to be understood as examples. No legally binding claim can be derived from them. We reserve the right to make changes to the product’s appearance.
