BORNIT® Road Markings type lines

road markings | thermoplastic | traffic signs | traffic regulations (StVO)
BORNIT
short information
  • ready to use straight out of the box
  • short installation times, only flame on
  • easy handling, little work required
  • with laying plan
  • can be driven over immediately after cooling
product
colour
content

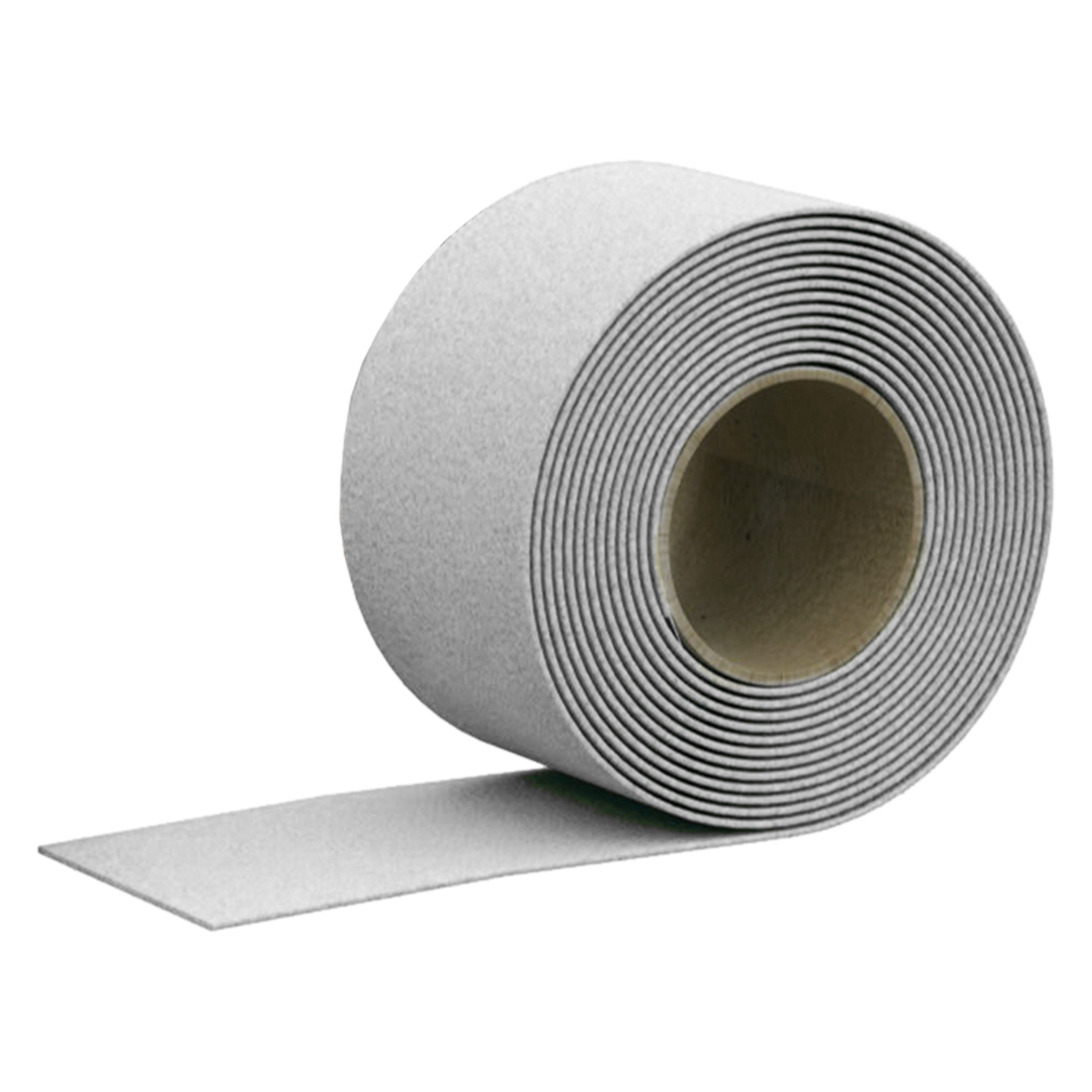

Line on roll 50 x 5000 mm
white
1 roll / Rolle
sufficient for:
item
EAN code
5 m
6800001136
4 017228 01248 3
Line on roll 100 x 5000 mm
white
1 roll / Rolle
sufficient for:
item
EAN code
5 m
6800000998
4 017228 01247 6
Line on roll 120 x 5000 mm
white
1 roll / Rolle
sufficient for:
item
EAN code
5 m
6800001173
4 017228 01249 0
Line on roll 150 x 5000 mm
white
1 roll /
sufficient for:
item
EAN code
5 m
4 017228 01257 5

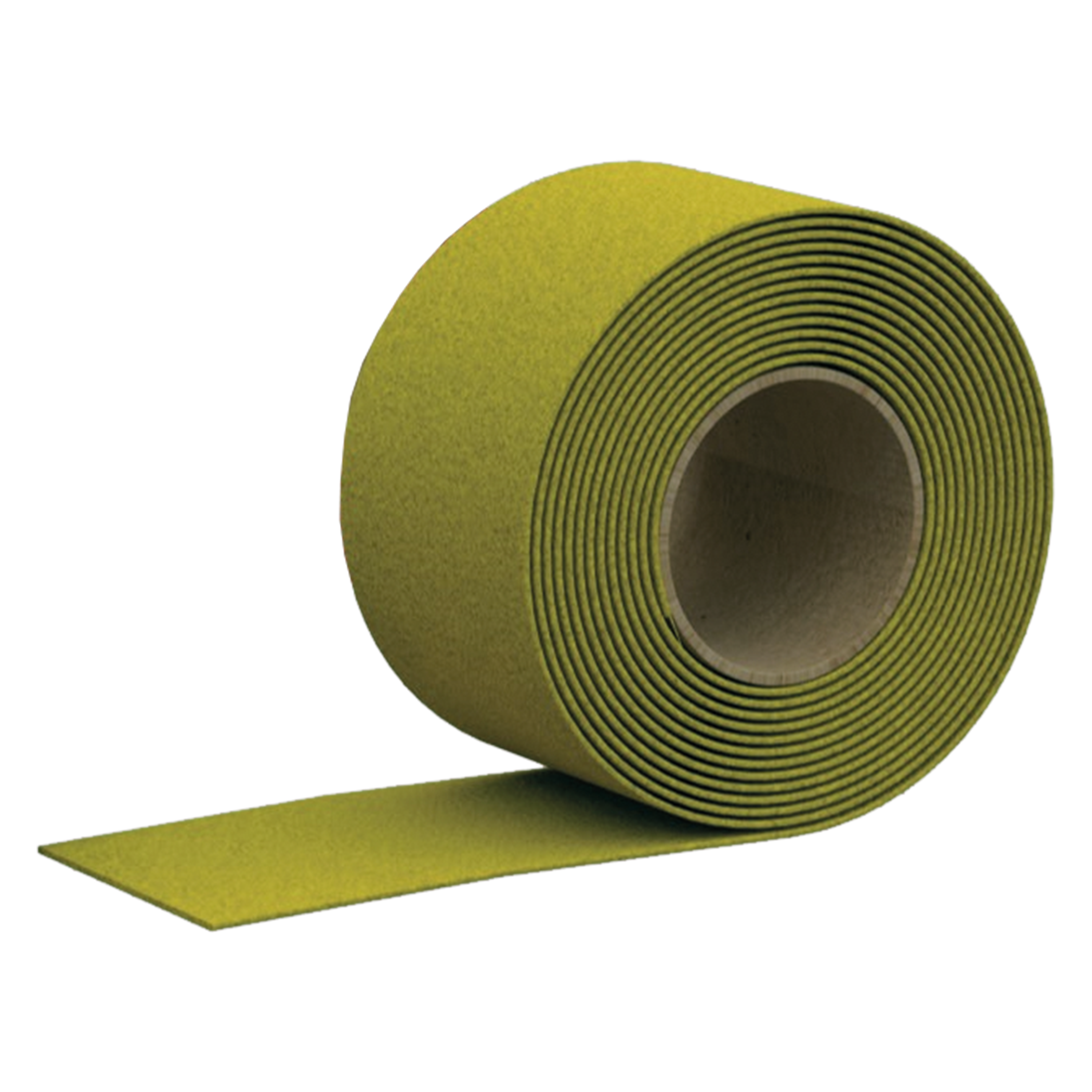

Line on roll 50 x 5000 mm
yellow
1 roll /
sufficient for:
item
EAN code
5 m
4 017228 01258 2
Line on roll 100 x 5000 mm
yellow
1 roll / Rolle
sufficient for:
item
EAN code
5 m
6800001143
4 017228 01259 9
Line on roll 120 x 5000 mm
yellow
1 roll /
sufficient for:
item
EAN code
5 m
4 017228 01261 2
Line on roll 150 x 5000 mm
yellow
1 roll / Rolle
sufficient for:
item
EAN code
5 m
6800001129
4 017228 01260 5
Marking line 100 x 1000 mm
yellow-black
1 piece / Stück
sufficient for:
item
EAN code
1 m
6800001057
4 017228 01196 7

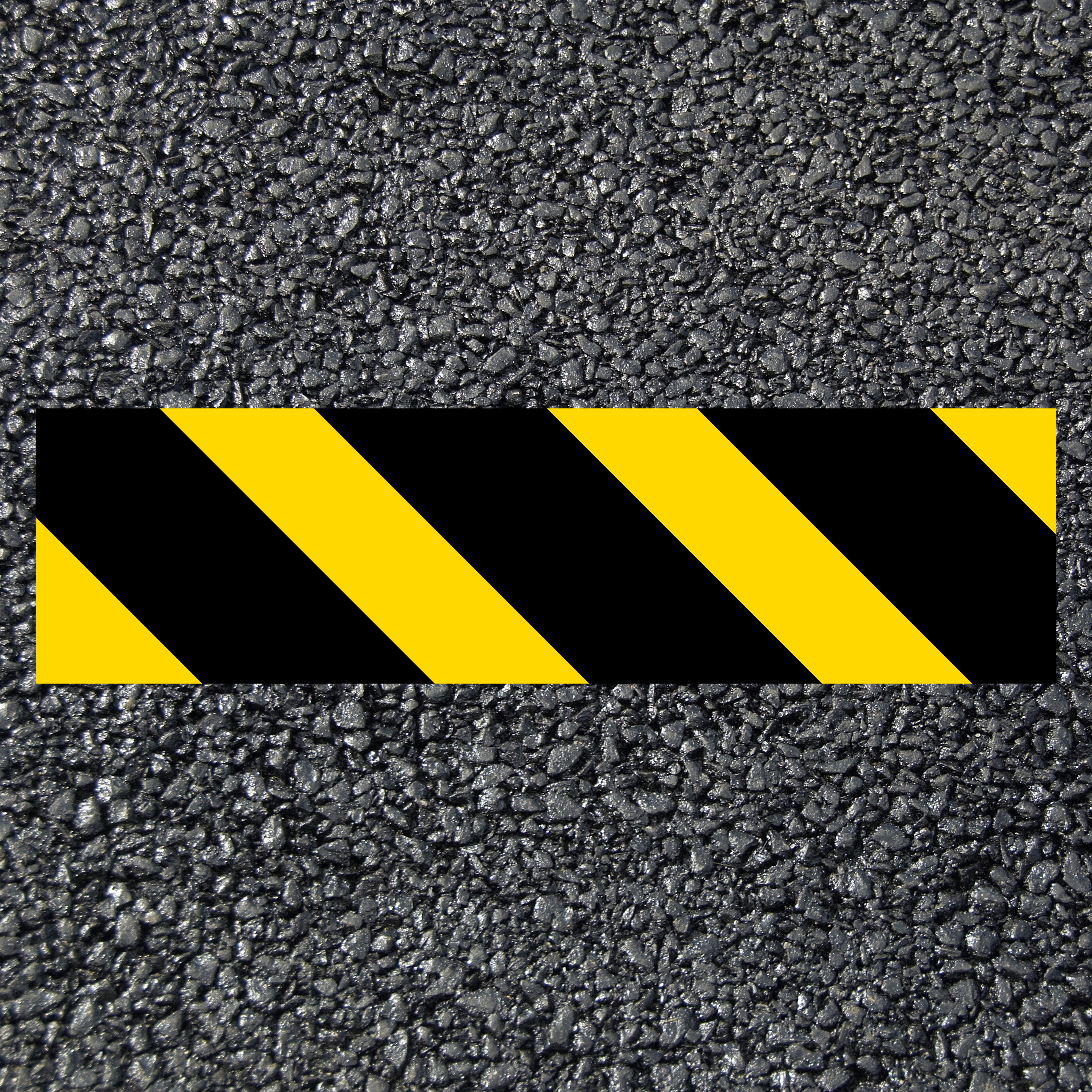

Marking line 250 x 1000 mm
yellow-black
1 piece /
sufficient for:
item
EAN code
1 m
4 017228 01197 4

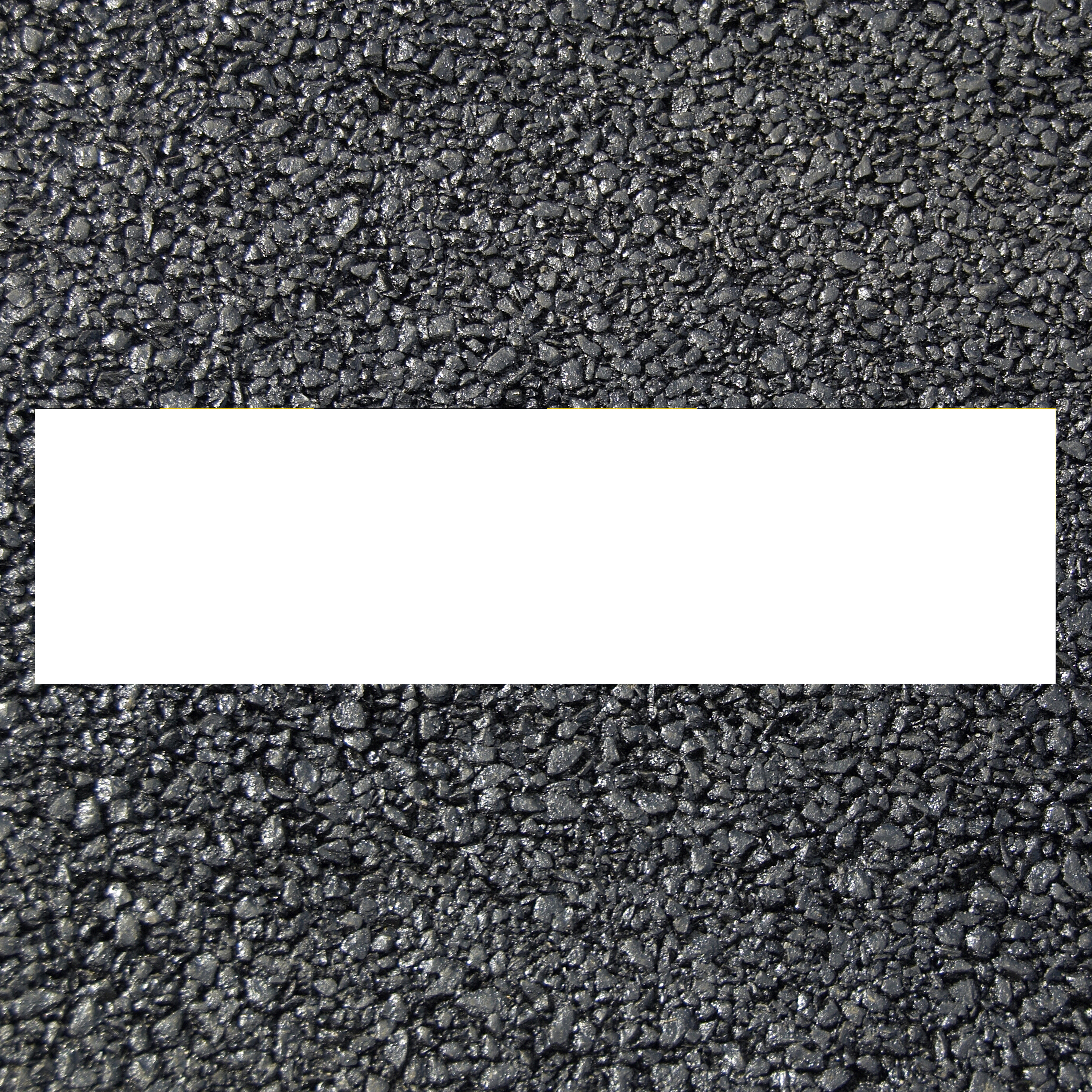

Marking line 100 x 1000 mm
white
1 piece / piece
sufficient for:
item
EAN code
1 m
6800000896
4 017228 01221 6
Marking line 120 x 1000 mm
white
1 piece / piece
sufficient for:
item
EAN code
1 m
6800000864
4 017228 01222 3
Marking line 150 x 1000 mm
white
1 piece / piece
sufficient for:
item
EAN code
1 m
6800000835
4 017228 01223 0
consumption
storage note
  • Store cardboard boxes in a dry place. Do not tilt, store horizontally!
  • +5 °C to +25 °C
  • Can be stored for 12 months in the original box

complementary products
status technical data sheet
24 November 2023

areas of application
BORNIT® Road Markings are used for safe traffic guidance in public traffic areas. In addition, there are other diverse areas of application, logistics markings on factory premises, company or club logos and many other design possibilities. BORNT® Road Markings are not suitable for hall markings.

type and properties
BORNIT® Road Markings are high-quality and ready-to-use symbols, signs and lettering for road marking.
BORNIT® Road Markings are horizontal traffic signs made of thermoplastic.

advantages
  • ready to use
  • short assembly times
  • easy handling
  • low labour input

surface
The substrate must be solid, clean and mineral. In the case of concrete surfaces, residues of curing agents and thin layers of fine mortar created during production should be removed. Asphalt substrates should not be covered with road markings too early. There is a risk that escaping flux oils will have an adhesion-reducing effect.

processing
The surface should be dry, frost-free, load-bearing and even. Careful sweeping is a prerequisite for good adhesion of the BORNIT® Road Markings. The substrate is briefly preheated with a gas burner. Then the marking is placed on the intended surface and aligned. Now the BORNIT® Road Marking is carefully heated with a gas burner and welded on. Then allow to cool and the road marking is ready to be driven over.

Colours:
Technische Zeichnung

product data in brief
product type
meltable road marking
base
thermoplastic
density at +20 °C
approx. 1.9 – 2.1 g/cm³
colour(s)
RAL 1004, RAL 1023, RAL 2010, RAL 3013, RAL 3015, RAL 3020, RAL 4003, RAL 4006, RAL 5002, RAL 5012, RAL 5017, RAL 5018, RAL 6018, RAL 6019, RAL 6024, RAL 7042, RAL 7043, RAL 8023, RAL 9016, RAL 9017 Special colours according to RAL Classic and RAL Design System available. Prices and delivery times on request.
application
gas burner
processing temperature (ambient and substrate)
> 0 °C
rainfast
immediately after flaming up
thorough hardening time
can be driven over directly after cooling (10 - 20 minutes)
storage
Store cardboard boxes in a dry place. Do not tilt, store horizontally! +5 °C to +25 °C
shelf life
Can be stored for 12 months in the original box
hazard class according to ADR
keine
Delivery form
box = VE = 1.020 x 620 x 35 mm on euro pallet max. 25 boxes per euro pallet

health and fire protection, occupational safety
To ensure safe handling of the product, the physical, safety, toxicological and ecological information provided online, the information in the current safety data sheet and the additional information on the label must be read and followed before purchasing or using the product! The applicable regulations, ordinances and laws must be complied with.

In case of doubt, please contact the BORNIT® application technology department or the BORNIT® service hotline on +49 375 2795 123.

storage
Box/packaging must be stored dry and protected from direct solar irradiation.

disposal note
Dispose of material residues according to European Waste Catalogue AVV-ASN: 020104 (Plastic waste (without packaging)).

note
The above information replaces all previous technical information about the product. Thus, this information is no longer valid. The details have been compiled according to the latest state of application technology. Please observe, however, that, depending on the state of the construction object, deviations from the method of application suggested in the datasheet may be required. Unless agreed otherwise in individual contracts, any information contained in the datasheet shall be non-binding and thus does not represent an agreed product constitution. We reserve the right to any changes in the information contained in this datasheet anytime.
